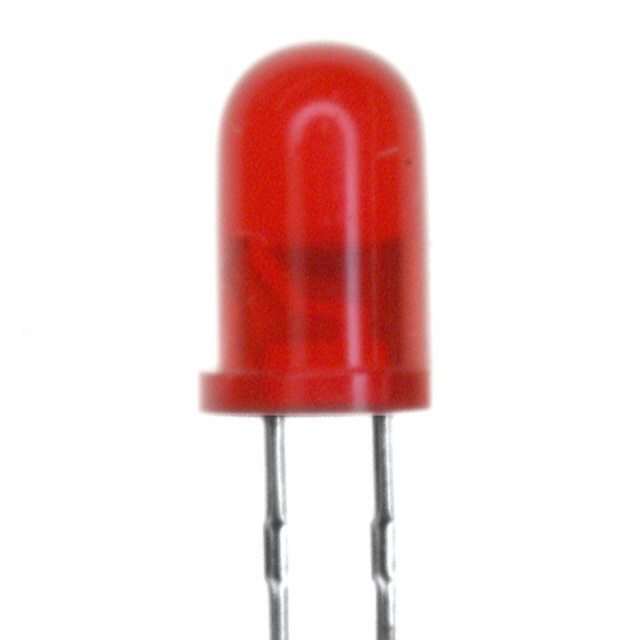

L53HD
LED RED DIFFUSED T-1 3/4 T/HManufacturer: Kingbright
Categories: LED Indication - Discrete
Quality Control: Learn More
Kingbright L53HD is a red diffused T-1 3/4 through-hole LED designed for discrete indication applications. This component features a dominant wavelength of 660nm and a peak wavelength of 700nm, with a typical forward voltage of 2.25V at 10mA test current. The diffused lens provides a wide 60° viewing angle, and the component is supplied in bulk packaging. Its 5mm diameter radial package is suitable for mounting in various industrial and consumer electronics systems, including automation, control panels, and signaling equipment. The component's specifications are consistent with general-purpose indicator requirements where a clear visual cue is needed.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | Radial |
| Color | Red |
| Size / Dimension | 5.00mm Dia |
| Mounting Type | Through Hole |
| Millicandela Rating | 5mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 2.25V |
| Lens Color | Red |
| Current - Test | 10mA |
| Viewing Angle | 60° |
| Height (Max) | 9.60mm |
| Wavelength - Peak | 700nm |
| Wavelength - Dominant | 660nm |
| Supplier Device Package | T-1 3/4 |
| Lens Transparency | Diffused |
| Lens Style | Round with Domed Top |
| Lens Size | 5mm, T-1 3/4 |
