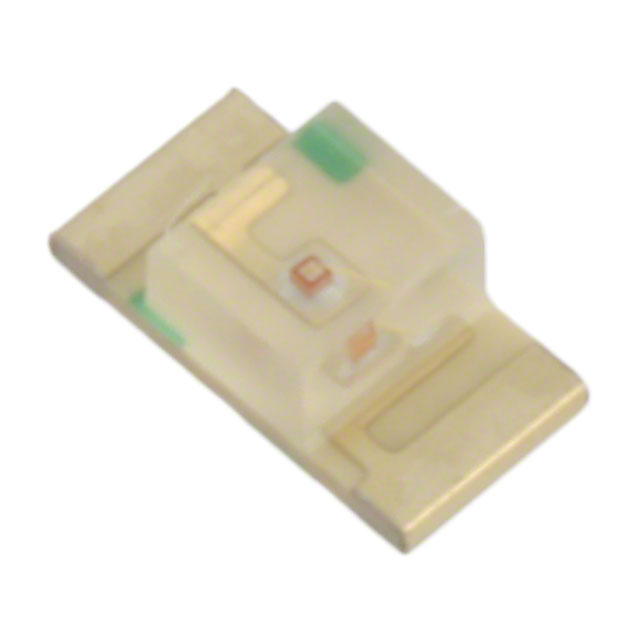

APTR3216PBC/A
LED BLUE CLEAR CHIP SMD BOT ENTManufacturer: Kingbright
Categories: LED Indication - Discrete
Quality Control: Learn More
Kingbright APTR3216PBC-A is a blue LED, 470nm dominant wavelength, with a peak wavelength of 468nm. This surface mount, bottom entry component is housed in a 1206 (3216 Metric) package. The clear, colorless lens offers a 120° viewing angle and a typical forward voltage of 3.2V at 20mA test current, producing 60mcd luminous intensity. Dimensions are 3.20mm L x 1.60mm W with a maximum height of 1.05mm. The lens measures 1.40mm x 1.60mm and features a rectangular, flat-top style. This component is supplied on tape and reel. Applications include general indication and lighting across various electronic systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 1206 (3216 Metric) |
| Color | Blue |
| Size / Dimension | 3.20mm L x 1.60mm W |
| Mounting Type | Surface Mount, Bottom Entry |
| Millicandela Rating | 60mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 3.2V |
| Lens Color | Colorless |
| Current - Test | 20mA |
| Viewing Angle | 120° |
| Height (Max) | 1.05mm |
| Wavelength - Peak | 468nm |
| Wavelength - Dominant | 470nm |
| Supplier Device Package | Chip LED |
| Lens Transparency | Clear |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 1.40mm x 1.60mm |
