APTBD3216SURKSYKC-01
LED RED/YLW CLEAR 1206 SMDManufacturer: Kingbright
Categories: LED Indication - Discrete
Quality Control: Learn More
Kingbright APTBD3216SURKSYKC-01, a Red/Yellow dual-color LED from the Heli-R series, is designed for discrete indication applications. This 1206 (3216 Metric) SMD component features independent emitters with a forward voltage of 1.95V for red and 2V for yellow, both tested at 20mA. The LED offers a luminous intensity of 600mcd for red and 450mcd for yellow, with dominant wavelengths of 630nm (red) and 590nm (yellow). Its clear, colorless lens with a domed top measures 1.60mm in diameter, and the overall dimensions are 3.20mm L x 1.60mm W x 2.00mm H. The viewing angle is 30°. This component is supplied on a Tape & Reel (TR) for surface mounting. It finds application in automotive, industrial, and consumer electronics for status indication.
Additional Information
Series: Heli-RRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 1206 (3216 Metric) |
| Color | Red, Yellow |
| Size / Dimension | 3.20mm L x 1.60mm W |
| Mounting Type | Surface Mount |
| Millicandela Rating | 600mcd Red, 450mcd Yellow |
| Configuration | Independent |
| Voltage - Forward (Vf) (Typ) | 1.95V Red, 2V Yellow |
| Lens Color | Colorless |
| Current - Test | 20mA Red, 20mA Yellow |
| Viewing Angle | 30° |
| Height (Max) | 2.00mm |
| Wavelength - Peak | 645nm Red, 590nm Yellow |
| Wavelength - Dominant | 630nm Red, 590nm Yellow |
| Supplier Device Package | 1206 |
| Lens Transparency | Clear |
| Lens Style | Round with Domed Top |
| Lens Size | 1.60mm Dia |
Request a Quote
Clients Also Buy

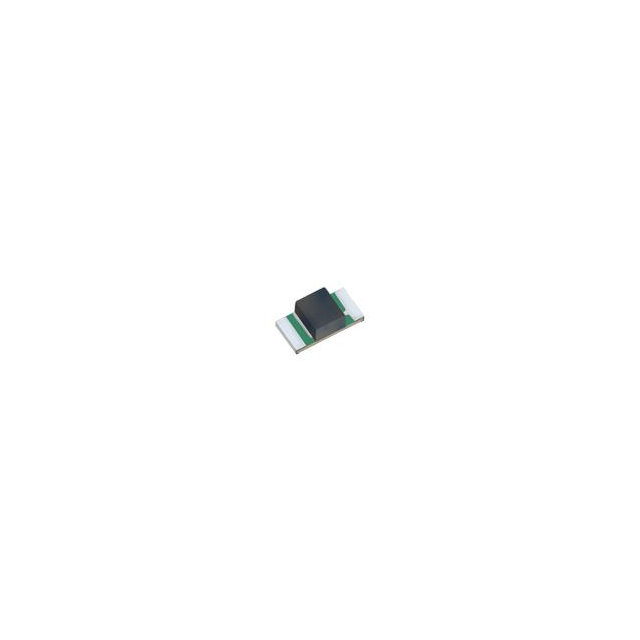

APTR3216P3BT
