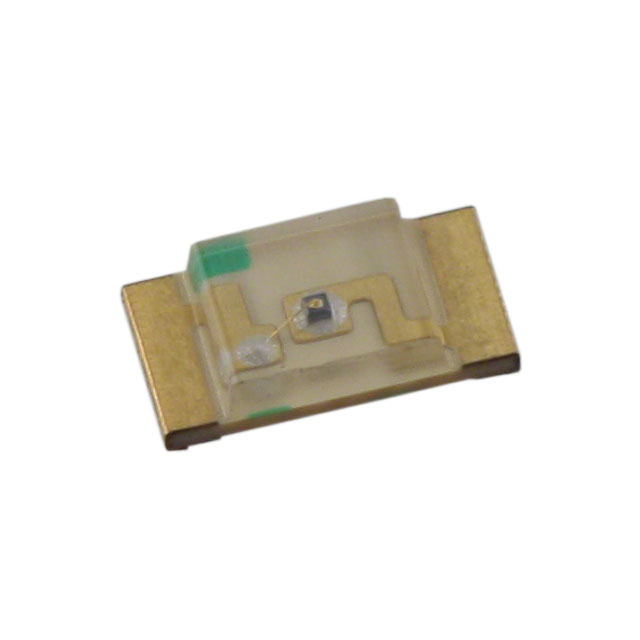

APT3216PBC/A
LED BLUE CLEAR CHIP SMDManufacturer: Kingbright
Categories: LED Indication - Discrete
Quality Control: Learn More
Kingbright APT3216PBC-A is a blue, clear lens LED with a standard configuration, designed for surface mount applications. This 1206 (3216 Metric) package component features a forward voltage of 3.2V and a test current of 20mA, producing a luminous intensity of 60mcd. The dominant wavelength is 470nm, with a peak wavelength of 468nm. The clear, colorless lens measures 2.00mm x 1.60mm with a flat top, offering a wide 120° viewing angle. This component is supplied in Tape & Reel (TR) packaging and is suitable for indication in various industries including consumer electronics, industrial control, and automotive lighting. The dimensions are 3.20mm x 1.60mm, with a maximum height of 0.75mm.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 1206 (3216 Metric) |
| Color | Blue |
| Size / Dimension | 3.20mm L x 1.60mm W |
| Mounting Type | Surface Mount |
| Millicandela Rating | 60mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 3.2V |
| Lens Color | Colorless |
| Current - Test | 20mA |
| Viewing Angle | 120° |
| Height (Max) | 0.75mm |
| Wavelength - Peak | 468nm |
| Wavelength - Dominant | 470nm |
| Supplier Device Package | Chip LED |
| Lens Transparency | Clear |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 2.00mm x 1.60mm |
