APL3015SRCPRV-F01
LED RED CLEAR CHIP SMDManufacturer: Kingbright
Categories: LED Indication - Discrete
Quality Control: Learn More

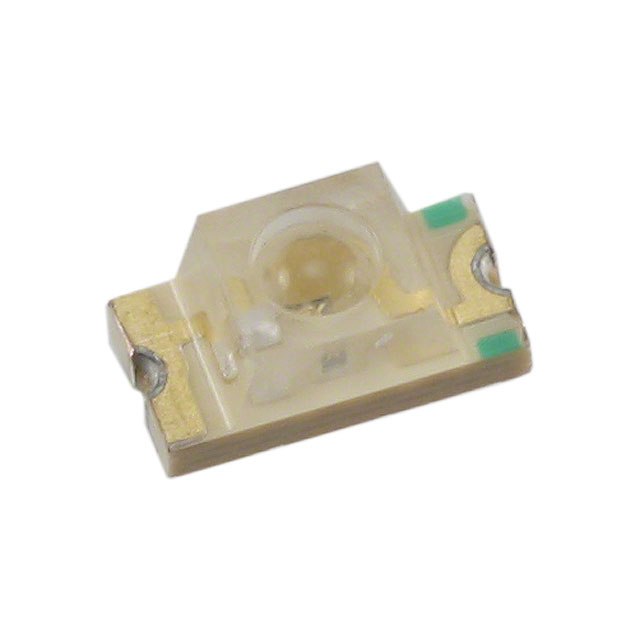

Kingbright APL3015SRCPRV-F01 is a red, clear lens, surface-mount LED indicator. This discrete component features a 640nm dominant wavelength and a 655nm peak wavelength, delivering a typical forward voltage of 1.85V at a 20mA test current. The LED offers a millicandela rating of 50mcd and a wide 70° viewing angle. Its compact 3.00mm L x 1.50mm W dimensions and 1.40mm maximum height, housed in a 2-SMD, No Lead package, make it suitable for space-constrained applications. The standard configuration and clear lens with a round, flat-top style are characteristic of its design. This component is commonly utilized in automotive, industrial, and consumer electronics for status indication. It is supplied in tape and reel packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 2-SMD, No Lead |
| Color | Red |
| Size / Dimension | 3.00mm L x 1.50mm W |
| Mounting Type | Surface Mount |
| Millicandela Rating | 50mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 1.85V |
| Lens Color | Colorless |
| Current - Test | 20mA |
| Viewing Angle | 70° |
| Height (Max) | 1.40mm |
| Wavelength - Peak | 655nm |
| Wavelength - Dominant | 640nm |
| Supplier Device Package | Chip LED |
| Lens Transparency | Clear |
| Lens Style | Round with Flat Top |
| Lens Size | - |
