APGA1602VBC/F-5MAV
LED BLUE CLEAR CHIP SMD R/AManufacturer: Kingbright
Categories: LED Indication - Discrete
Quality Control: Learn More

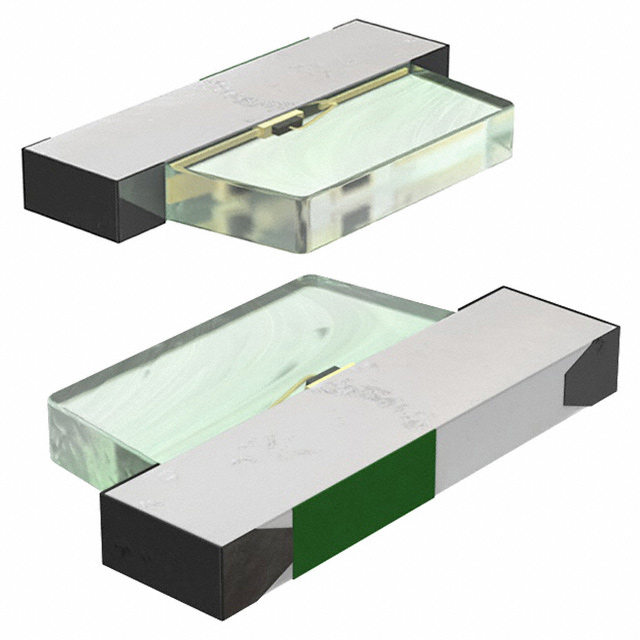

Kingbright APGA1602VBC-F-5MAV is a blue LED with a dominant wavelength of 463nm. This surface-mount, right-angle component is housed in a 0603 (1608 Metric) package, measuring 1.60mm L x 0.90mm W. It features a clear, colorless lens with a flat-top rectangular style and a typical forward voltage of 2.8V at a test current of 5mA, yielding a millicandela rating of 25mcd. The viewing angles are 150° and 155°. This discrete LED is commonly utilized for indication purposes across various industries including consumer electronics, industrial automation, and medical devices. It is supplied on a tape and reel.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 0603 (1608 Metric) |
| Color | Blue |
| Size / Dimension | 1.60mm L x 0.90mm W |
| Mounting Type | Surface Mount, Right Angle |
| Millicandela Rating | 25mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 2.8V |
| Lens Color | Colorless |
| Current - Test | 5mA |
| Viewing Angle | 150°, 155° |
| Height (Max) | 0.30mm |
| Wavelength - Peak | 458nm |
| Wavelength - Dominant | 463nm |
| Supplier Device Package | Chip LED |
| Lens Transparency | Clear |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 1.60mm x 0.90mm |
