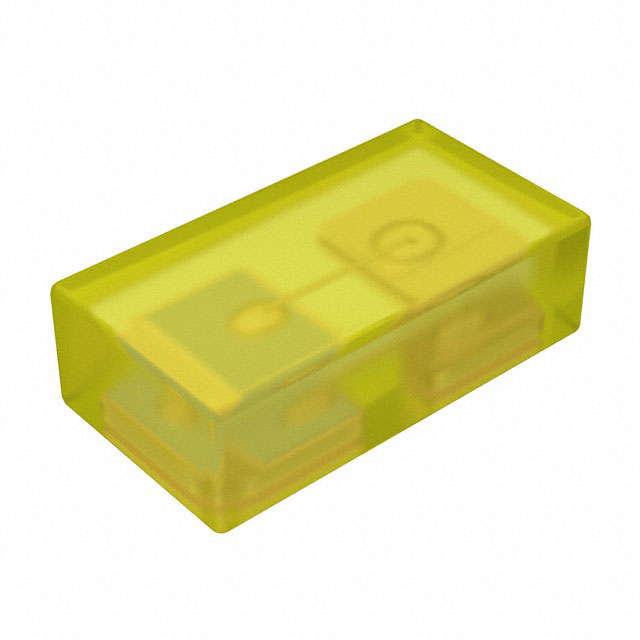

APG0603RWF-TT-5MAV
LED WHITE DIFFUSED 2SMDManufacturer: Kingbright
Categories: LED Indication - Discrete
Quality Control: Learn More
Kingbright HELI-UM series, APG0603RWF-TT-5MAV, is a white diffused LED designed for surface mount applications. This 2-SMD, 0201 package component operates with a typical forward voltage of 2.9V and a test current of 5mA, delivering 100mcd luminous intensity. The LED features a 0.35mm x 0.65mm rectangular lens with a flat top and a diffused surface, providing a wide 135° viewing angle. Its compact dimensions of 0.65mm L x 0.35mm W and a maximum height of 0.25mm make it suitable for space-constrained designs. This component is commonly utilized in consumer electronics and industrial automation. The APG0603RWF-TT-5MAV is supplied in Tape & Reel packaging.
Additional Information
Series: HELI-UMRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 2-SMD, 0201 |
| Color | White |
| Size / Dimension | 0.65mm L x 0.35mm W |
| Mounting Type | Surface Mount |
| Millicandela Rating | 100mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 2.9V |
| Lens Color | Yellow |
| Current - Test | 5mA |
| Viewing Angle | 135° |
| Height (Max) | 0.25mm |
| Wavelength - Peak | - |
| Wavelength - Dominant | - |
| Supplier Device Package | 2-SMD |
| Lens Transparency | Diffused |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 0.35mm x 0.65mm |
