APDA1806QBC/D
LED BLUE CLEAR SMD R/AManufacturer: Kingbright
Categories: LED Indication - Discrete
Quality Control: Learn More

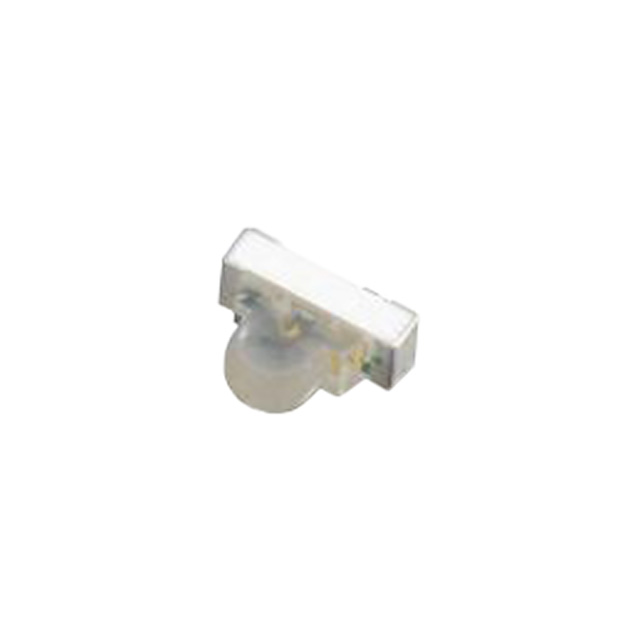

Kingbright APDA1806QBC-D is a blue, clear lens, surface mount, right-angle LED. This discrete indicator features a 1.80mm x 1.50mm footprint with a maximum height of 0.70mm. Designed for direct mounting onto PCBs, it operates with a typical forward voltage of 3.3V and a test current of 20mA, producing a luminous intensity of 320mcd. The dominant wavelength is 465nm, with a peak wavelength of 460nm. Its clear, colorless lens with a domed top and a 25° viewing angle ensures focused light emission. This component is commonly utilized in industrial automation, consumer electronics, and medical equipment for status indication. Packaged in Tape & Reel (TR), it is supplied in a 2-SMD, No Lead package.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 2-SMD, No Lead |
| Color | Blue |
| Size / Dimension | 1.80mm L x 1.50mm W |
| Mounting Type | Surface Mount, Right Angle |
| Millicandela Rating | 320mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 3.3V |
| Lens Color | Colorless |
| Current - Test | 20mA |
| Viewing Angle | 25° |
| Height (Max) | 0.70mm |
| Wavelength - Peak | 460nm |
| Wavelength - Dominant | 465nm |
| Supplier Device Package | SMD |
| Lens Transparency | Clear |
| Lens Style | Round with Domed Top |
| Lens Size | 0.94mm Dia |
