APA3010SRCPRV-GX
LED RED CLEAR SMD R/AManufacturer: Kingbright
Categories: LED Indication - Discrete
Quality Control: Learn More

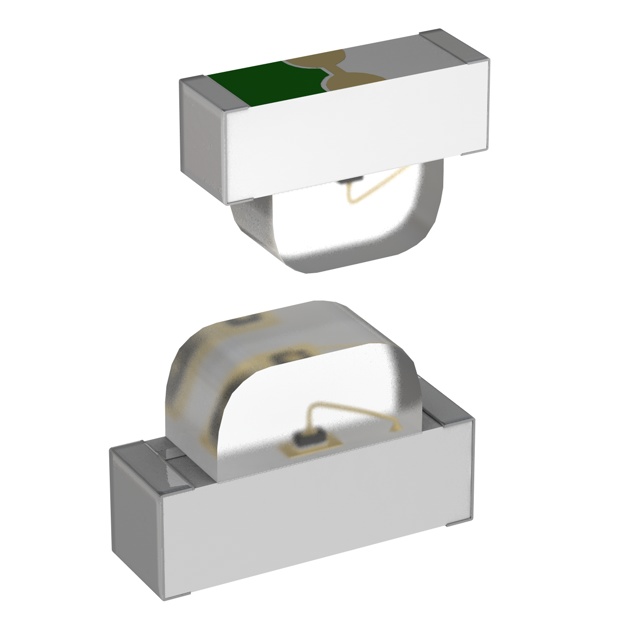

Kingbright APA3010SRCPRV-GX is a red, 640nm discrete LED designed for surface mount, right-angle applications. This 2-SMD, No Lead component features a clear, colorless lens with a domed top and a 120° viewing angle. Rated for a forward voltage of 1.85V (typical) and a test current of 20mA, it achieves a millicandela rating of 30mcd. The LED measures 3.00mm in length and 2.00mm in width, with a maximum height of 1.00mm. This component is commonly utilized in industrial automation and consumer electronics for visual indication. It is supplied in Tape & Reel (TR) packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 2-SMD, No Lead |
| Color | Red |
| Size / Dimension | 3.00mm L x 2.00mm W |
| Mounting Type | Surface Mount, Right Angle |
| Millicandela Rating | 30mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 1.85V |
| Lens Color | Colorless |
| Current - Test | 20mA |
| Viewing Angle | 120° |
| Height (Max) | 1.00mm |
| Wavelength - Peak | 655nm |
| Wavelength - Dominant | 640nm |
| Supplier Device Package | SMD |
| Lens Transparency | Clear |
| Lens Style | Rectangle with Domed Top |
| Lens Size | 2.00mm x 1.00mm |
