APA2106SRCPRV
LED RED CLEAR 2SMD R/AManufacturer: Kingbright
Categories: LED Indication - Discrete
Quality Control: Learn More

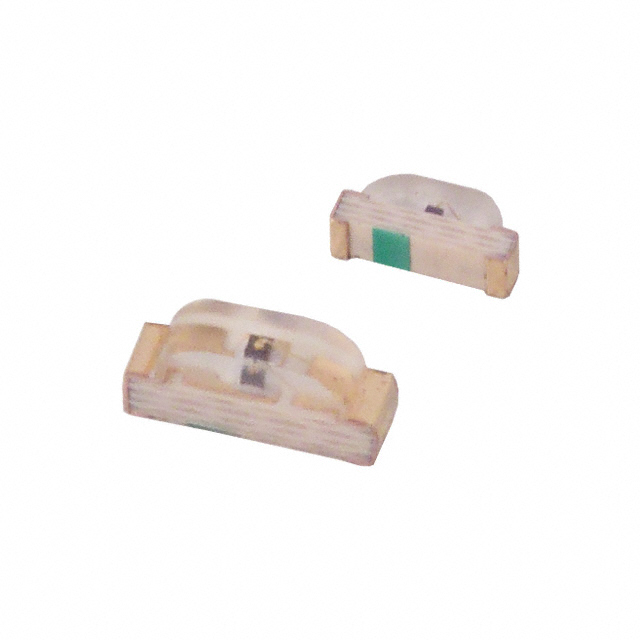

Kingbright APA2106SRCPRV is a red, 640nm LED designed for surface mount applications. This discrete indicator component features a clear, domed rectangular lens with dimensions of 1.70mm x 0.60mm. The LED offers a typical forward voltage of 1.85V and a peak wavelength of 660nm. It is rated for 20mA test current, providing a millicandela rating of 30mcd. The 2-SMD, No Lead package with a right-angle mounting type ensures efficient integration into compact PCB designs. This component is supplied in Tape & Reel packaging and is commonly utilized in industrial automation, consumer electronics, and automotive lighting applications.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 2-SMD, No Lead |
| Color | Red |
| Size / Dimension | 2.10mm L x 1.00mm W |
| Mounting Type | Surface Mount, Right Angle |
| Millicandela Rating | 30mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 1.85V |
| Lens Color | Colorless |
| Current - Test | 20mA |
| Viewing Angle | 120° |
| Height (Max) | 0.60mm |
| Wavelength - Peak | 660nm |
| Wavelength - Dominant | 640nm |
| Supplier Device Package | 2-SMD |
| Lens Transparency | Clear |
| Lens Style | Rectangle with Domed Top |
| Lens Size | 1.70mm x 0.60mm |
