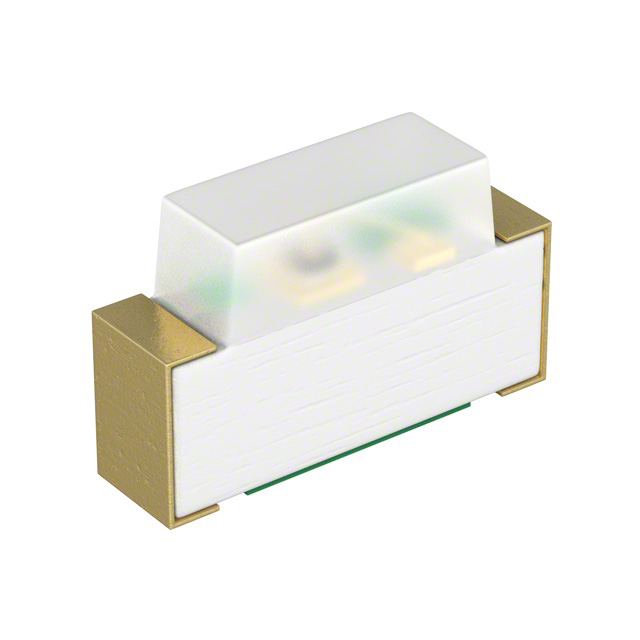

APA1606PBC/A
LED BLUE CLEAR CHIP SMD R/AManufacturer: Kingbright
Categories: LED Indication - Discrete
Quality Control: Learn More
Kingbright APA1606PBC-A is a blue, 470nm wavelength (dominant) discrete LED designed for surface mount applications. This 2-SMD, No Lead component features a clear, colorless lens with a flat-top rectangular profile, measuring 1.60mm x 1.20mm. The LED offers a typical forward voltage of 3.2V and a current rating of 20mA for testing, producing a millicandela rating of 60mcd with a wide 110° viewing angle. Its right-angle mounting orientation and compact 0.60mm maximum height make it suitable for space-constrained designs in industrial automation and consumer electronics. The component is supplied in tape and reel packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 2-SMD, No Lead |
| Color | Blue |
| Size / Dimension | 1.60mm L x 1.20mm W |
| Mounting Type | Surface Mount, Right Angle |
| Millicandela Rating | 60mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 3.2V |
| Lens Color | Colorless |
| Current - Test | 20mA |
| Viewing Angle | 110° |
| Height (Max) | 0.60mm |
| Wavelength - Peak | 468nm |
| Wavelength - Dominant | 470nm |
| Supplier Device Package | Chip LED |
| Lens Transparency | Clear |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 1.20mm x 0.60mm |
