AM2520SRC09
LED RED CLEAR SMD BOTTOM ENTManufacturer: Kingbright
Categories: LED Indication - Discrete
Quality Control: Learn More

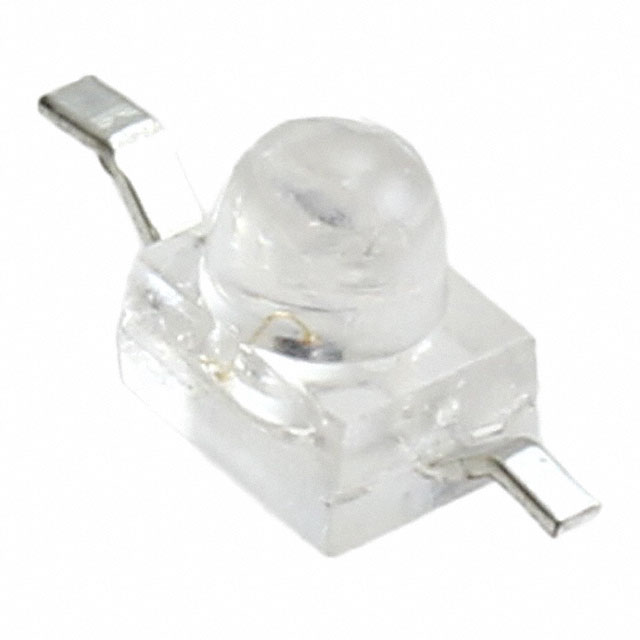

Kingbright AM2520SRC09 is a red, clear lens, surface-mount LED designed for discrete indication applications. This component features a standard configuration with a dominant wavelength of 640nm and a peak wavelength of 655nm, emitting a luminous intensity of 600mcd at a forward current of 20mA. The forward voltage (Vf) is typically 1.85V. The LED is housed in a 2-SMD, Z-Bend package, measuring 2.50mm in length and 2.00mm in width, with a maximum height of 2.90mm. Its clear, colorless lens has a diameter of 1.90mm and a domed top, providing a viewing angle of 20 degrees. This component is supplied in Tape & Reel packaging and is suitable for use in automotive, industrial, and consumer electronics sectors.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 2-SMD, Z-Bend |
| Color | Red |
| Size / Dimension | 2.50mm L x 2.00mm W |
| Mounting Type | Surface Mount, Bottom Entry |
| Millicandela Rating | 600mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 1.85V |
| Lens Color | Colorless |
| Current - Test | 20mA |
| Viewing Angle | 20° |
| Height (Max) | 2.90mm |
| Wavelength - Peak | 655nm |
| Wavelength - Dominant | 640nm |
| Supplier Device Package | SMD |
| Lens Transparency | Clear |
| Lens Style | Round with Domed Top |
| Lens Size | 1.90mm Dia |
