AAAF5060PBESEEVGEC
LED BLUE/GREEN/ORANGE CLEAR SMDManufacturer: Kingbright
Categories: LED Indication - Discrete
Quality Control: Learn More

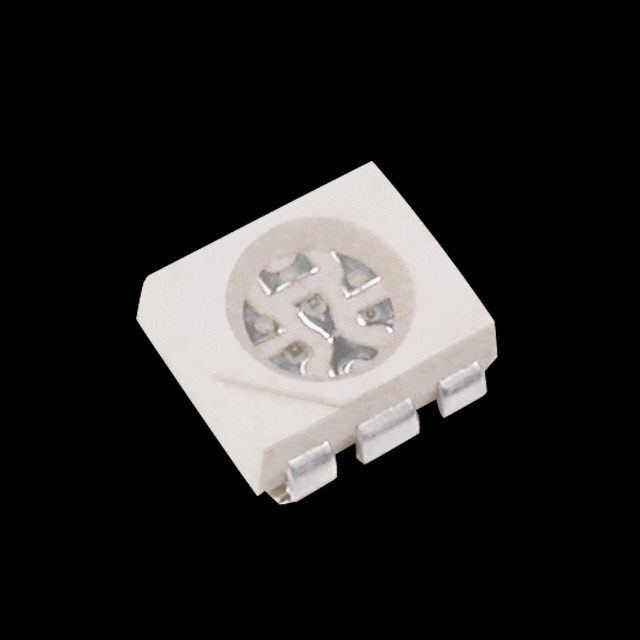

Kingbright AAAF5060PBESEEVGEC is a multi-color discrete LED component featuring independent blue, green, and orange emitters. This 6-SMD, J-Lead device offers distinct dominant wavelengths of 470nm (Blue), 525nm (Green), and 621nm (Orange), with corresponding peak wavelengths of 468nm, 520nm, and 630nm. Forward voltage characteristics are typified at 3.2V for blue and green, and 2V for orange, with standard test currents of 30mA for blue and green, and 50mA for orange. The component provides significant luminous intensity, rated at 250mcd for blue, 600mcd for green, and 1000mcd for orange at their respective test currents. The clear, colorless lens measures 4.00mm in diameter with a round, flat-top profile, contributing to a wide 100° viewing angle. Measuring 5.00mm in length and 6.00mm in width, with a maximum height of 2.30mm, this surface-mount component is supplied in tape and reel packaging. It finds application in industrial and consumer electronics for visual indication.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 6-SMD, J-Lead |
| Color | Blue, Green, Orange |
| Size / Dimension | 5.00mm L x 6.00mm W |
| Mounting Type | Surface Mount |
| Millicandela Rating | 250mcd Blue, 600mcd Green, 1000mcd Orange |
| Configuration | Independent |
| Voltage - Forward (Vf) (Typ) | 3.2V Blue, 3.2V Green, 2V Orange |
| Lens Color | Colorless |
| Current - Test | 30mA Blue, 30mA Green, 50mA Orange |
| Viewing Angle | 100° |
| Height (Max) | 2.30mm |
| Wavelength - Peak | 468nm Blue, 520nm Green, 630nm Orange |
| Wavelength - Dominant | 470nm Blue, 525nm Green, 621nm Orange |
| Supplier Device Package | SMD |
| Lens Transparency | Clear |
| Lens Style | Round with Flat Top |
| Lens Size | 4.00mm Dia |
