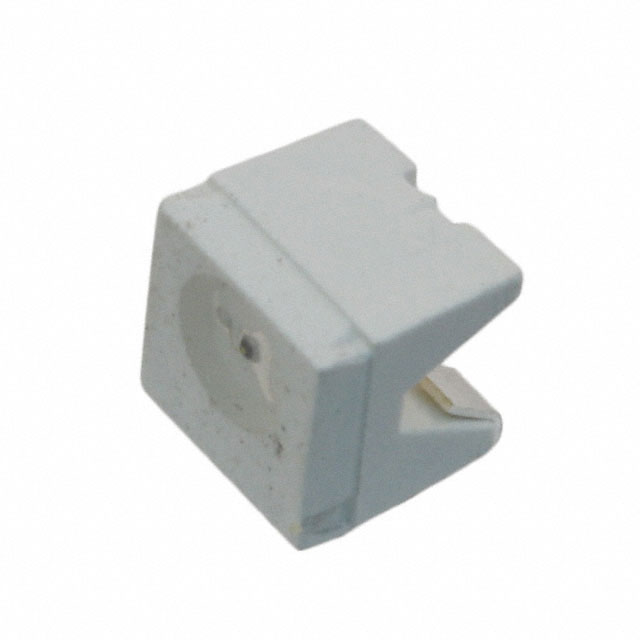

AA4040SRS
LED RED CLEAR SMD R/AManufacturer: Kingbright
Categories: LED Indication - Discrete
Quality Control: Learn More
Kingbright AA4040SRS is a red, clear lens, surface mount, right-angle LED designed for discrete indication. This component features a 640nm dominant wavelength and a 655nm peak wavelength, with a typical forward voltage of 1.85V at a test current of 20mA. The LED delivers a millicandela rating of 60mcd with a wide 120° viewing angle. Housed in a 2-SMD, Boomerang package with dimensions of 4.00mm L x 3.60mm W and a lens diameter of 2.40mm, it is supplied on tape and reel. This component is commonly utilized in industrial control, consumer electronics, and automotive applications requiring reliable visual feedback.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 2-SMD, Boomerang |
| Color | Red |
| Size / Dimension | 4.00mm L x 3.60mm W |
| Mounting Type | Surface Mount, Right Angle |
| Millicandela Rating | 60mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 1.85V |
| Lens Color | Colorless |
| Current - Test | 20mA |
| Viewing Angle | 120° |
| Height (Max) | 4.00mm |
| Wavelength - Peak | 655nm |
| Wavelength - Dominant | 640nm |
| Supplier Device Package | SMD |
| Lens Transparency | Clear |
| Lens Style | Round with Flat Top |
| Lens Size | 2.40mm Dia |
