AA4040SRC
LED RED CLEAR SMD R/AManufacturer: Kingbright
Categories: LED Indication - Discrete
Quality Control: Learn More

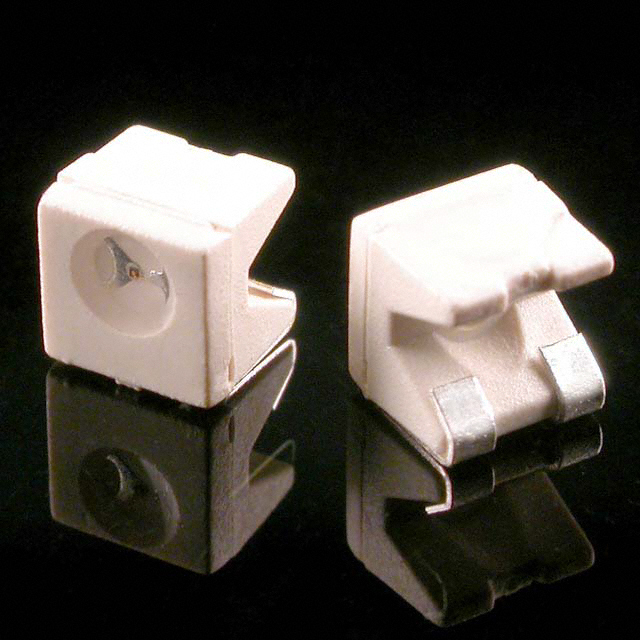

Kingbright AA4040SRC is a red, clear lens, surface-mount LED designed for indication applications. This discrete LED emits light at a dominant wavelength of 640nm with a typical forward voltage of 1.85V at 20mA. The component features a 90° viewing angle and a millicandela rating of 120mcd. Mounted on a 2-SMD, Boomerang package with a right-angle termination, it offers a compact footprint of 4.00mm L x 3.60mm W. The lens diameter is 2.40mm. This component is commonly utilized in automotive, industrial, and consumer electronics for status indication. It is supplied in Tape & Reel (TR) packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 2-SMD, Boomerang |
| Color | Red |
| Size / Dimension | 4.00mm L x 3.60mm W |
| Mounting Type | Surface Mount, Right Angle |
| Millicandela Rating | 120mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 1.85V |
| Lens Color | Colorless |
| Current - Test | 20mA |
| Viewing Angle | 90° |
| Height (Max) | 4.00mm |
| Wavelength - Peak | 660nm |
| Wavelength - Dominant | 640nm |
| Supplier Device Package | SMD |
| Lens Transparency | Clear |
| Lens Style | Round with Flat Top |
| Lens Size | 2.40mm Dia |
