AA3528SRS
LED RED CLEAR SMDManufacturer: Kingbright
Categories: LED Indication - Discrete
Quality Control: Learn More

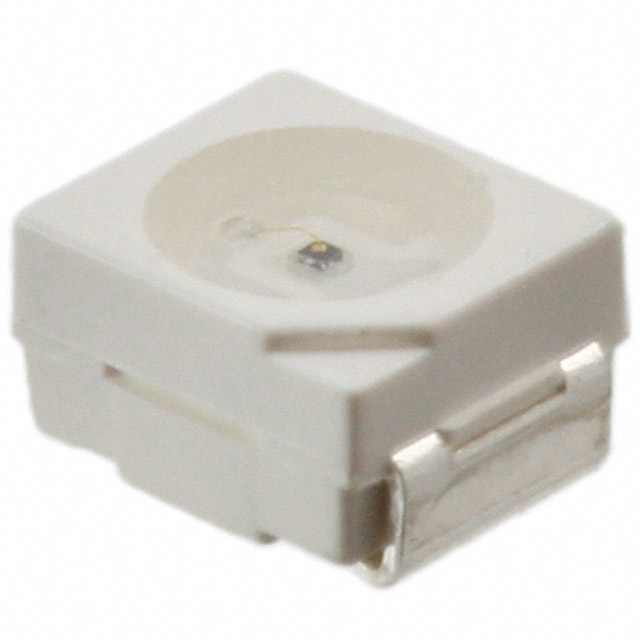

Kingbright AA3528SRS is a red, clear lens, surface-mount LED with a 640nm dominant wavelength. This 2-PLCC package component features a 1.85V typical forward voltage and a 20mA test current, achieving a luminous intensity of 150mcd. Its round lens with a flat top has a 2.40mm diameter and a 120° viewing angle. The discreet LED is designed for indication applications and is supplied in a Tape & Reel (TR) package with dimensions of 3.20mm L x 2.80mm W and a maximum height of 2.10mm. This component is commonly utilized in industrial automation, consumer electronics, and medical device sectors.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 2-PLCC |
| Color | Red |
| Size / Dimension | 3.20mm L x 2.80mm W |
| Mounting Type | Surface Mount |
| Millicandela Rating | 150mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 1.85V |
| Lens Color | Colorless |
| Current - Test | 20mA |
| Viewing Angle | 120° |
| Height (Max) | 2.10mm |
| Wavelength - Peak | 660nm |
| Wavelength - Dominant | 640nm |
| Supplier Device Package | SMD |
| Lens Transparency | Clear |
| Lens Style | Round with Flat Top |
| Lens Size | 2.40mm Dia |
Request a Quote
