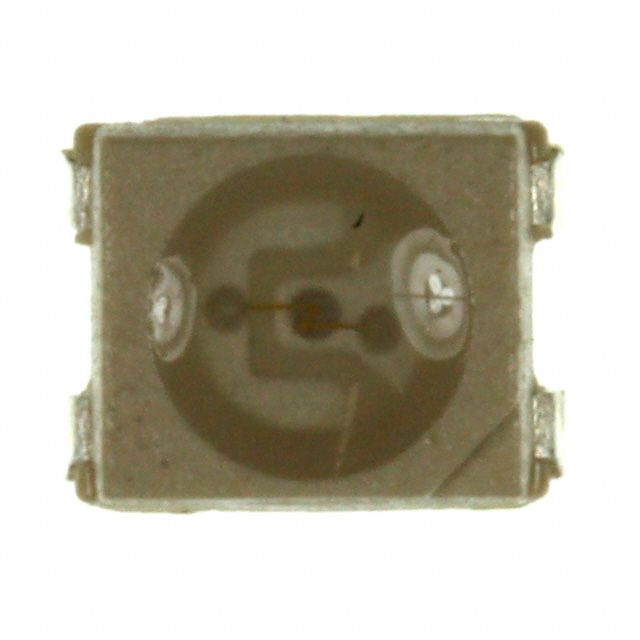

AA3528AQBC/D
LED BLUE CLEAR SMDManufacturer: Kingbright
Categories: LED Indication - Discrete
Quality Control: Learn More
Kingbright AA3528AQBC-D is a blue LED designed for discrete indication applications. This surface mount component features a 2-PLCC package with dimensions of 3.20mm L x 2.80mm W and a maximum height of 2.10mm. It emits blue light with a dominant wavelength of 470nm and a peak wavelength of 468nm, achieving a typical luminous intensity of 200mcd at 20mA forward current. The clear, colorless lens has a 2.40mm diameter and a round, flat-top style, providing a wide 120° viewing angle. Operating at a typical forward voltage of 3.3V, this LED is supplied on tape and reel. It is commonly utilized in automotive lighting, industrial control panels, and consumer electronics for status indication.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 2-PLCC |
| Color | Blue |
| Size / Dimension | 3.20mm L x 2.80mm W |
| Mounting Type | Surface Mount |
| Millicandela Rating | 200mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 3.3V |
| Lens Color | Colorless |
| Current - Test | 20mA |
| Viewing Angle | 120° |
| Height (Max) | 2.10mm |
| Wavelength - Peak | 468nm |
| Wavelength - Dominant | 470nm |
| Supplier Device Package | SMD |
| Lens Transparency | Clear |
| Lens Style | Round with Flat Top |
| Lens Size | 2.40mm Dia |
