AA3528APR7C/A
LED PURPLE CLEAR SMDManufacturer: Kingbright
Categories: LED Indication - Discrete
Quality Control: Learn More

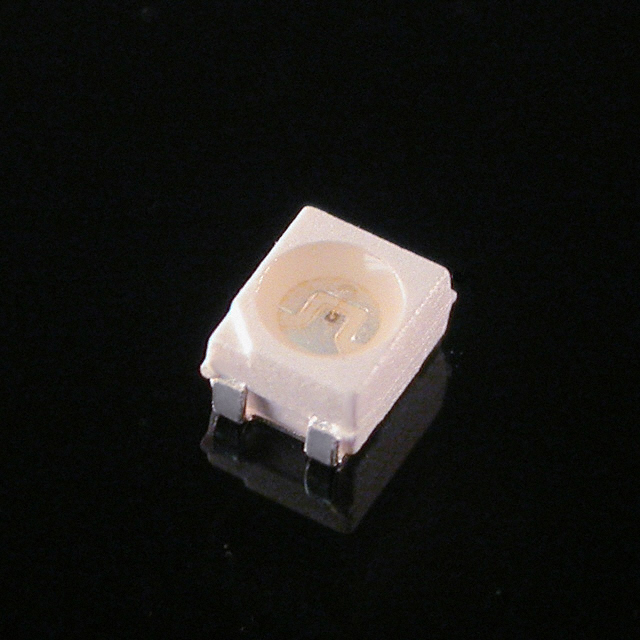

Kingbright AA3528APR7C-A is a discrete purple LED with a clear, colorless lens. This surface-mount device, housed in a 2-PLCC package, measures 3.20mm L x 2.80mm W with a maximum height of 2.10mm. It features a standard configuration and a viewing angle of 120°. The LED exhibits a typical forward voltage (Vf) of 3.2V and a millicandela rating of 100mcd at a test current of 20mA. This component is commonly utilized for indication purposes across various industries including consumer electronics, automotive, and industrial automation. The product is supplied in Tape & Reel (TR) packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 2-PLCC |
| Color | Purple |
| Size / Dimension | 3.20mm L x 2.80mm W |
| Mounting Type | Surface Mount |
| Millicandela Rating | 100mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 3.2V |
| Lens Color | Colorless |
| Current - Test | 20mA |
| Viewing Angle | 120° |
| Height (Max) | 2.10mm |
| Wavelength - Peak | - |
| Wavelength - Dominant | - |
| Supplier Device Package | SMD |
| Lens Transparency | Clear |
| Lens Style | Round with Flat Top |
| Lens Size | 2.40mm Dia |
