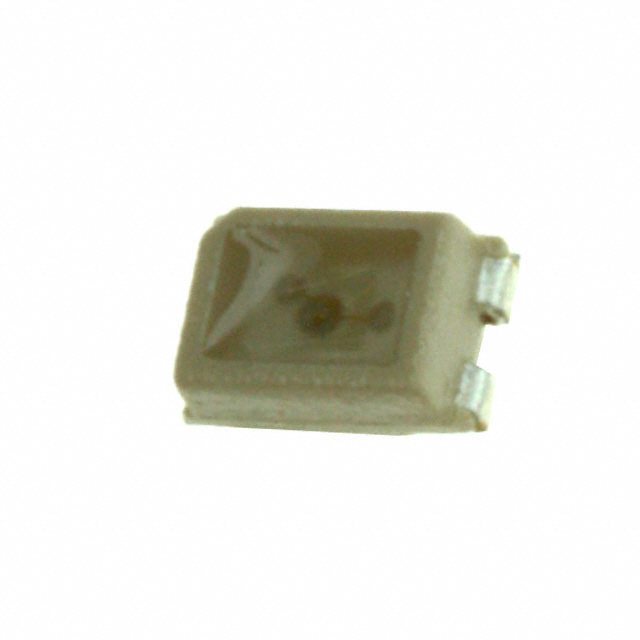

AA3020AZGC
LED GREEN CLEAR SMDManufacturer: Kingbright
Categories: LED Indication - Discrete
Quality Control: Learn More
Kingbright AA3020AZGC is a Green 525nm LED Indication component. This surface mount device features a 2-SMD, J-Lead package with a 2.00mm x 1.40mm clear, colorless lens. Delivering 500mcd luminous intensity at a typical forward voltage of 3.3V and 20mA test current, this LED is suitable for general indication applications. The dominant wavelength is 525nm, with a peak wavelength of 515nm. Its dimensions are 2.70mm L x 2.00mm W, with a maximum height of 1.65mm. The viewing angle is 90°. This component is supplied in Tape & Reel packaging. It finds application in various industrial and consumer electronics, including automotive and telecommunications.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 2-SMD, J-Lead |
| Color | Green |
| Size / Dimension | 2.70mm L x 2.00mm W |
| Mounting Type | Surface Mount |
| Millicandela Rating | 500mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 3.3V |
| Lens Color | Colorless |
| Current - Test | 20mA |
| Viewing Angle | 90° |
| Height (Max) | 1.65mm |
| Wavelength - Peak | 515nm |
| Wavelength - Dominant | 525nm |
| Supplier Device Package | SMD |
| Lens Transparency | Clear |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 2.00mm x 1.40mm |
