AA3020ASGC
LED GREEN CLEAR SMDManufacturer: Kingbright
Categories: LED Indication - Discrete
Quality Control: Learn More

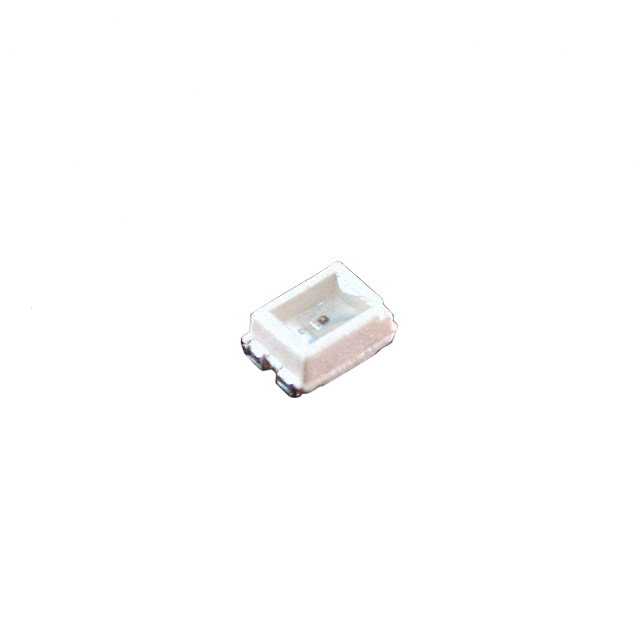

Kingbright AA3020ASGC is a green, clear lens, surface-mount LED designed for indication applications. This discrete component emits light at a dominant wavelength of 568nm, with a typical forward voltage of 2.2V and a test current of 20mA. It provides a millicandela rating of 30mcd with a wide 90° viewing angle. The LED features a 2.00mm x 1.40mm rectangular lens with a flat top, housed in a 2-SMD, J-lead package measuring 2.70mm in length and 2.00mm in width, with a maximum height of 1.65mm. This component is commonly utilized in industrial automation, consumer electronics, and medical devices. It is supplied in Tape & Reel packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 2-SMD, J-Lead |
| Color | Green |
| Size / Dimension | 2.70mm L x 2.00mm W |
| Mounting Type | Surface Mount |
| Millicandela Rating | 30mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 2.2V |
| Lens Color | Colorless |
| Current - Test | 20mA |
| Viewing Angle | 90° |
| Height (Max) | 1.65mm |
| Wavelength - Peak | 565nm |
| Wavelength - Dominant | 568nm |
| Supplier Device Package | SMD |
| Lens Transparency | Clear |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 2.00mm x 1.40mm |
