AAD1-9090BRGC-01/3-S
LED MOD XPOWER RGB STARBOARDManufacturer: Kingbright
Categories: LED COBs, Engines, Modules, Strips
Quality Control: Learn More

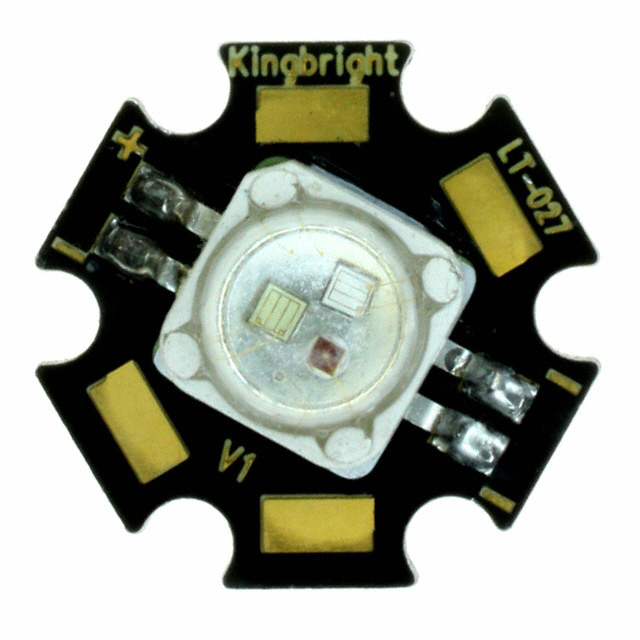

Kingbright AAD1-9090BRGC-01-3-S is an Xpower series LED module featuring Red, Green, and Blue (RGB) emitters on a starboard configuration. This COB (Chip-on-Board) engine operates with a maximum forward current of 350mA and typical forward voltages of 2.5V for Red, 3.3V for Green, and 3.2V for Blue. The module provides distinct wavelengths of 625nm (Red), 530nm (Green), and 458nm (Blue). With a 135° viewing angle and a domed lens type, this component is designed for applications requiring high-intensity, color-tunable lighting. Its dimensions are 19.75mm in length and 19.05mm in width, with a height of 8.30mm. This Kingbright LED module is suitable for use in architectural lighting, entertainment lighting, and general illumination systems.
Additional Information
Series: XpowerRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tube |
| Color | Red, Green, Blue (RGB) |
| Wavelength | 625nm Red, 530nm Green, 458nm Blue |
| Size / Dimension | 19.75mm L x 19.05mm W |
| Type | LED Module |
| Configuration | Starboard |
| Voltage - Forward (Vf) (Typ) | 2.5V Red, 3.3V Green, 3.2V Blue |
| Height | 8.30mm |
| Current - Test | 350mA |
| Viewing Angle | 135° |
| Lens Type | Domed |
| Current - Max | 350mA |
| Lumens/Watt @ Current - Test | - |
| CCT (K) | - |
| CRI (Color Rendering Index) | - |
| Light Emitting Surface (LES) | - |
| Temperature - Test | - |
| Luminous Flux @ Current/Temperature | - |
