SC52-11SRWA
DISPLAY 7SEG 0.52"" SGL RED 10DIPManufacturer: Kingbright
Categories: LED Character and Numeric
Quality Control: Learn More
Kingbright SC52-11SRWA is a single-digit, 7-segment display module featuring a red LED character. This component utilizes a common cathode configuration and operates with a typical forward voltage of 1.85V and a test current of 20mA, resulting in a millicandela rating of 34mcd. The digit size is 0.52 inches (13.21mm). The display measures 0.689 inches high by 0.488 inches wide by 0.276 inches deep (17.50mm x 12.40mm x 7.00mm) and is housed in a 10-DIP package with a 0.600-inch (15.24mm) pin pitch. The maximum power dissipation for this component is 75mW. This display is suitable for applications across industrial control, consumer electronics, and instrumentation.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 10-DIP (0.600"", 15.24mm) |
| Color | Red |
| Display Type | 7-Segment |
| Size / Dimension | 0.689"" H x 0.488"" W x 0.276"" D (17.50mm x 12.40mm x 7.00mm) |
| Number of Characters | 1 |
| Millicandela Rating | 34mcd |
| Common Pin | Common Cathode |
| Digit/Alpha Size | 0.52"" (13.21mm) |
| Voltage - Forward (Vf) (Typ) | 1.85V |
| Current - Test | 20mA |
| Wavelength - Peak | 660nm |
| Power Dissipation (Max) | 75mW |
Request a Quote
Clients Also Buy
ACPSC04-41SEKWA
DISPLAY 14SEG 0.4"" SGL ORG 16SMD

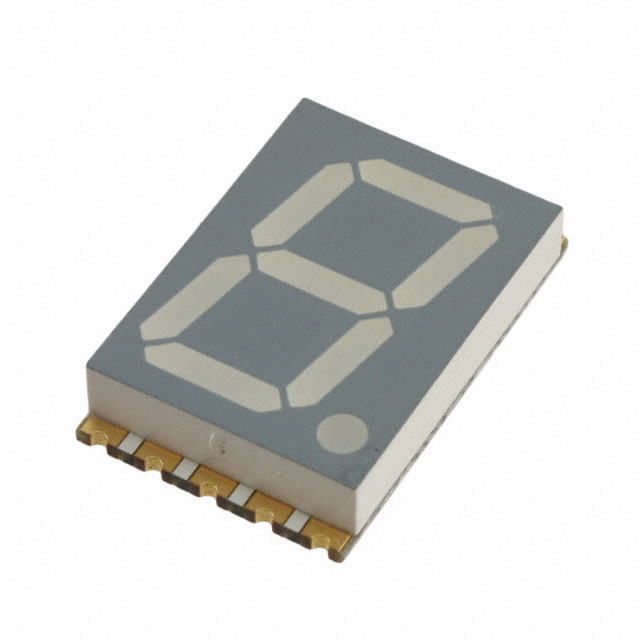

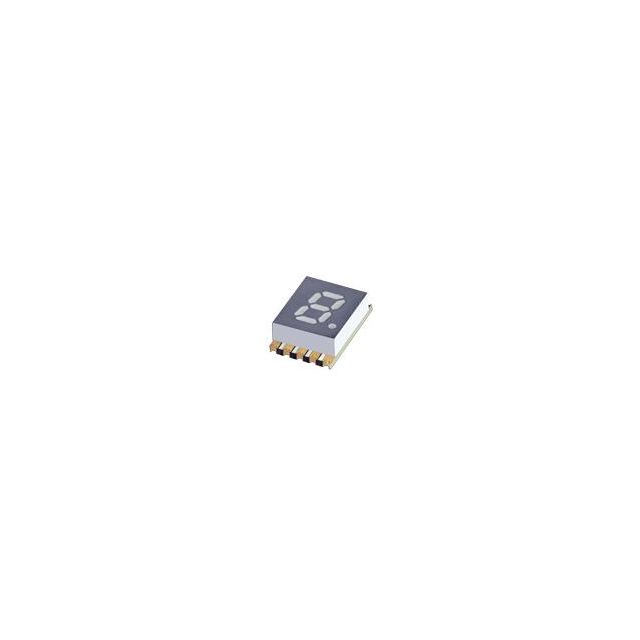

ACSA02-41CGKWA-F01
DISPLAY 7SEG 0.2"" SGL GRN 10SMD

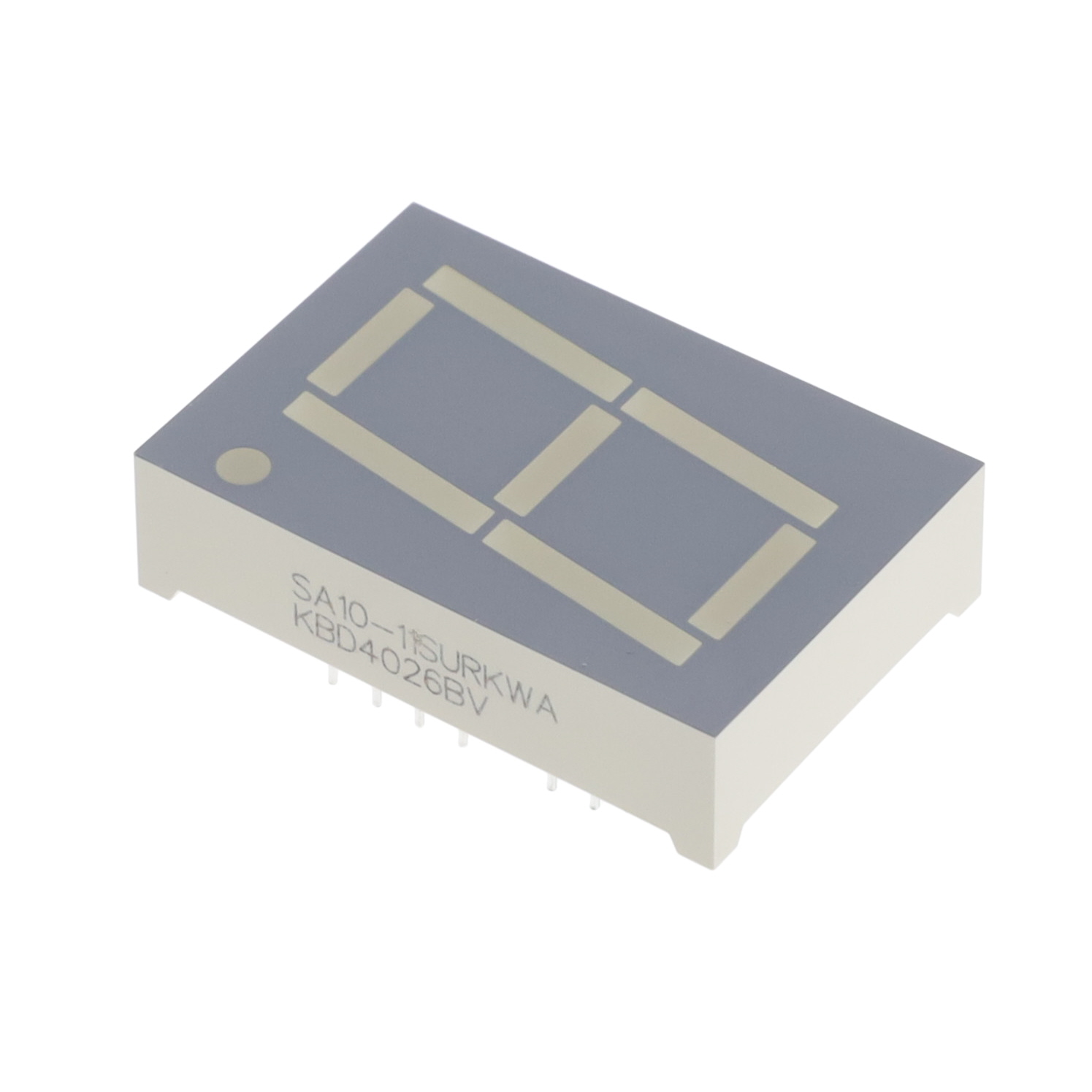

SA10-11SRWA
