SC08-21SRWA

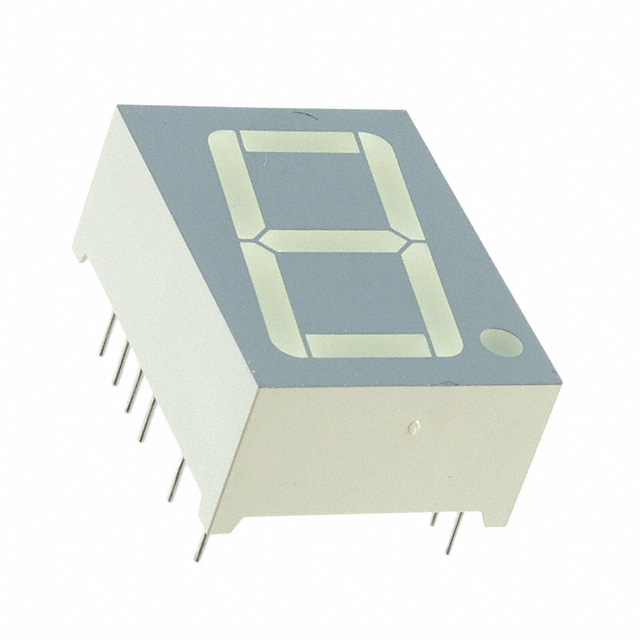

DISPLAY 7-SEG 0.8"" SGL RED 18DIPManufacturer: Kingbright
Categories: LED Character and Numeric
Quality Control: Learn More
The Kingbright SC08-21SRWA is a single-digit, 0.8-inch red 7-segment display module featuring a common cathode configuration. This component is designed for direct drive with a typical forward voltage of 1.85V and a test current of 20mA, drawing a maximum power dissipation of 75mW. The display offers a luminous intensity of 36mcd at its peak wavelength of 660nm. Housed in an 18-DIP package with a 0.600-inch pin spacing and 15 leads, its dimensions are 0.984 inches high by 0.732 inches wide by 0.417 inches deep (25.00mm x 18.60mm x 10.60mm). Applications for this display module include industrial control panels, instrumentation, and general-purpose alphanumeric indicators.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 18-DIP (0.600"", 15.24mm), 15 Leads |
| Color | Red |
| Display Type | 7-Segment |
| Size / Dimension | 0.984"" H x 0.732"" W x 0.417"" D (25.00mm x 18.60mm x 10.60mm) |
| Number of Characters | 1 |
| Millicandela Rating | 36mcd |
| Common Pin | Common Cathode |
| Digit/Alpha Size | 0.80"" (20.32mm) |
| Voltage - Forward (Vf) (Typ) | 1.85V |
| Current - Test | 20mA |
| Wavelength - Peak | 660nm |
| Power Dissipation (Max) | 75mW |
