SA56-11SRWA

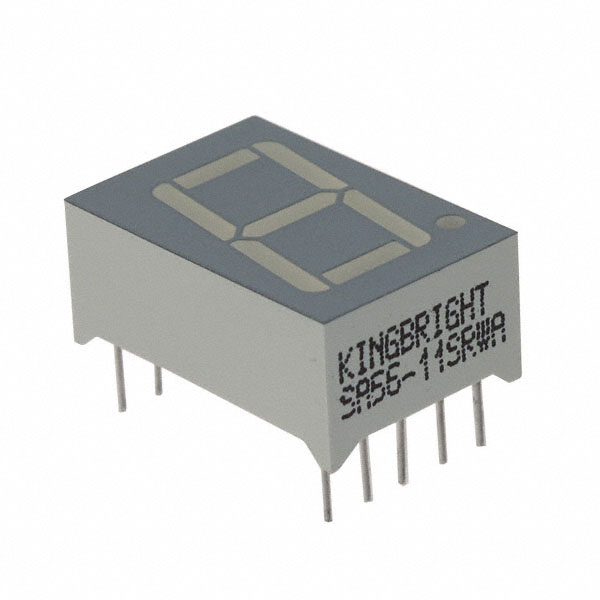

DISPLAY 7SEG 0.56"" SGL RED 10DIPManufacturer: Kingbright
Categories: LED Character and Numeric
Quality Control: Learn More
Kingbright SA56-11SRWA is a high-efficiency red 7-segment LED display module featuring a single character with a 0.56-inch digit height. This common anode device operates with a typical forward voltage of 1.85V and a test current of 20mA, achieving a luminous intensity of 34mcd. The component is housed in a 10-DIP package with a standard 0.600-inch pin spacing. Its dimensions are 19.05mm (H) x 12.70mm (W) x 8.00mm (D). The SA56-11SRWA is suitable for various industrial and consumer electronics applications requiring clear numeric display, including instrumentation, control panels, and point-of-sale systems. The power dissipation is rated at a maximum of 75mW.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 10-DIP (0.600"", 15.24mm) |
| Color | Red |
| Display Type | 7-Segment |
| Size / Dimension | 0.750"" H x 0.500"" W x 0.315"" D (19.05mm x 12.70mm x 8.00mm) |
| Number of Characters | 1 |
| Millicandela Rating | 34mcd |
| Common Pin | Common Anode |
| Digit/Alpha Size | 0.56"" (14.22mm) |
| Voltage - Forward (Vf) (Typ) | 1.85V |
| Current - Test | 20mA |
| Wavelength - Peak | 660nm |
| Power Dissipation (Max) | 75mW |
