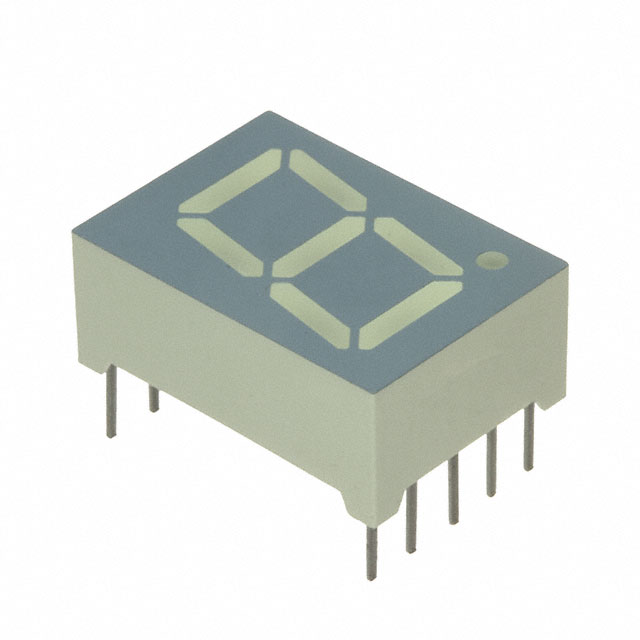

SA52-11EWA
DISPLAY 7SEG 0.52"" SGL RED 10DIPManufacturer: Kingbright
Categories: LED Character and Numeric
Quality Control: Learn More
Display Modules - LED Character and Numeric Red 7-Segment 1 Character Common Anode 2V 20mA 0.689"" H x 0.488"" W x 0.276"" D (17.50mm x 12.40mm x 7.00mm) 10-DIP (0.600"", 15.24mm)
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 8 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 10-DIP (0.600"", 15.24mm) |
| Color | Red |
| Display Type | 7-Segment |
| Size / Dimension | 0.689"" H x 0.488"" W x 0.276"" D (17.50mm x 12.40mm x 7.00mm) |
| Number of Characters | 1 |
| Millicandela Rating | 6.4mcd |
| Common Pin | Common Anode |
| Digit/Alpha Size | 0.52"" (13.21mm) |
| Voltage - Forward (Vf) (Typ) | 2V |
| Current - Test | 20mA |
| Wavelength - Peak | 627nm |
| Power Dissipation (Max) | 75mW |
