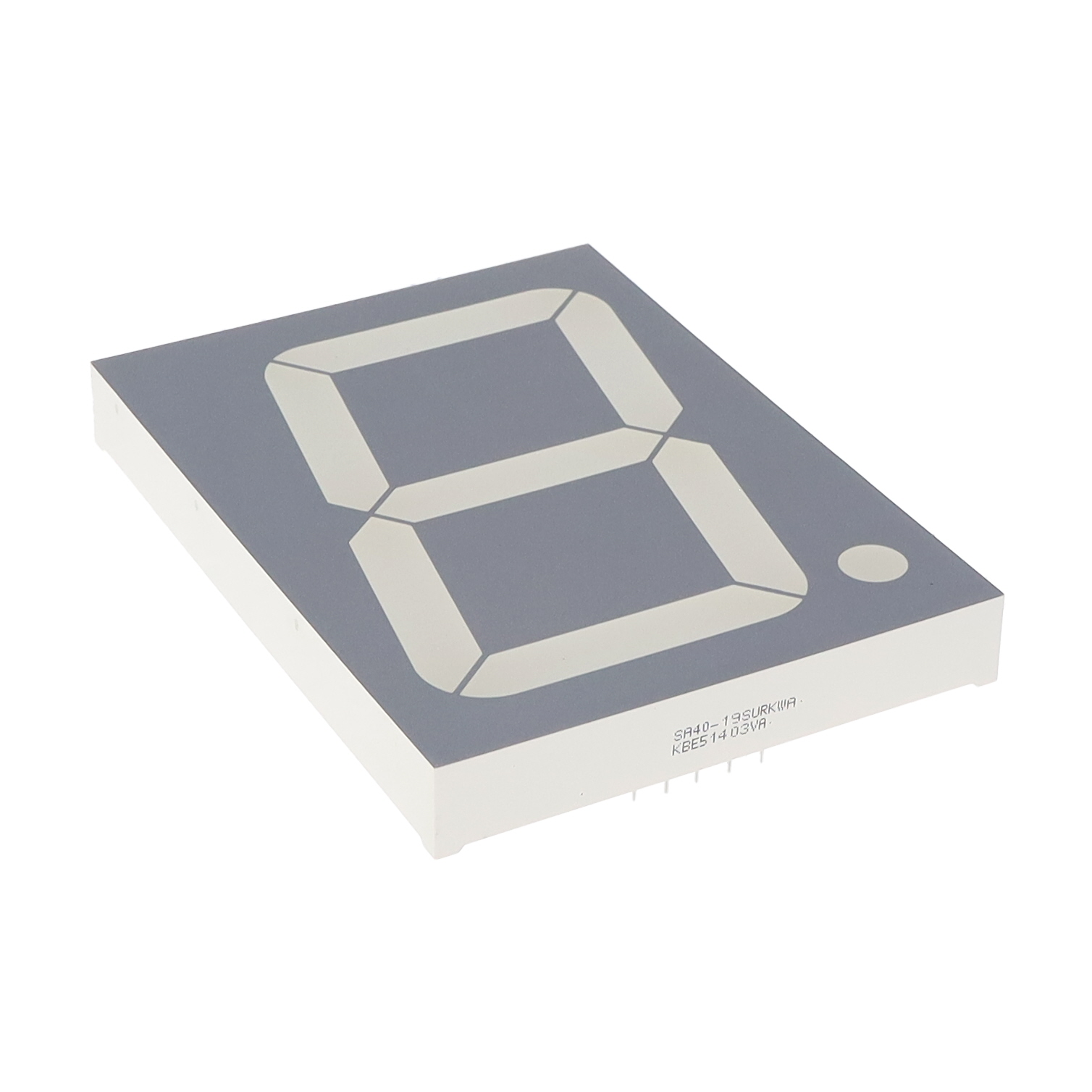

SA40-19SURKWA
DISPLAY 7SEG 3.98"" SGL RED 10DIPManufacturer: Kingbright
Categories: LED Character and Numeric
Quality Control: Learn More
Display Modules - LED Character and Numeric Red 7-Segment 1 Character Common Anode 3.9V 20mA 4.803"" H x 3.543"" W x 0.591"" D (122.00mm x 90.00mm x 15.00mm) 10-DIP (4.210"", 107.00mm)
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 8 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 10-DIP (4.210"", 107.00mm) |
| Color | Red |
| Display Type | 7-Segment |
| Size / Dimension | 4.803"" H x 3.543"" W x 0.591"" D (122.00mm x 90.00mm x 15.00mm) |
| Number of Characters | 1 |
| Millicandela Rating | 250mcd |
| Common Pin | Common Anode |
| Digit/Alpha Size | 3.98"" (101.20mm) |
| Voltage - Forward (Vf) (Typ) | 3.9V |
| Current - Test | 20mA |
| Wavelength - Peak | 645nm |
| Power Dissipation (Max) | 150mW |
