SA23-11SRWA
DISPLAY 7SEG 2.24"" SGL RED 10DIPManufacturer: Kingbright
Categories: LED Character and Numeric
Quality Control: Learn More

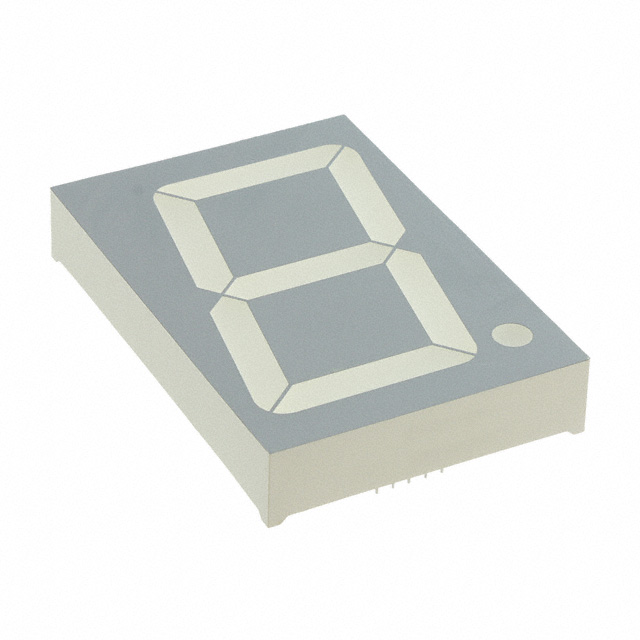

Kingbright SA23-11SRWA is a single-digit, 7-segment numeric display module featuring a red LED character. This component offers a 2.24-inch digit size with a typical forward voltage of 7.4V at 20mA test current, providing a luminous intensity of 190mcd. The display utilizes a common anode configuration and is housed in a 10-DIP package, measuring 2.756 inches in height, 1.890 inches in width, and 0.472 inches in depth. With a maximum power dissipation of 300mW and a peak wavelength of 660nm, this display is suitable for a range of instrumentation and industrial control applications requiring clear numeric readouts.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 10-DIP (2.370"", 60.10mm) |
| Color | Red |
| Display Type | 7-Segment |
| Size / Dimension | 2.756"" H x 1.890"" W x 0.472"" D (70.00mm x 48.00mm x 12.00mm) |
| Number of Characters | 1 |
| Millicandela Rating | 190mcd |
| Common Pin | Common Anode |
| Digit/Alpha Size | 2.24"" (56.90mm) |
| Voltage - Forward (Vf) (Typ) | 7.4V |
| Current - Test | 20mA |
| Wavelength - Peak | 660nm |
| Power Dissipation (Max) | 300mW |
