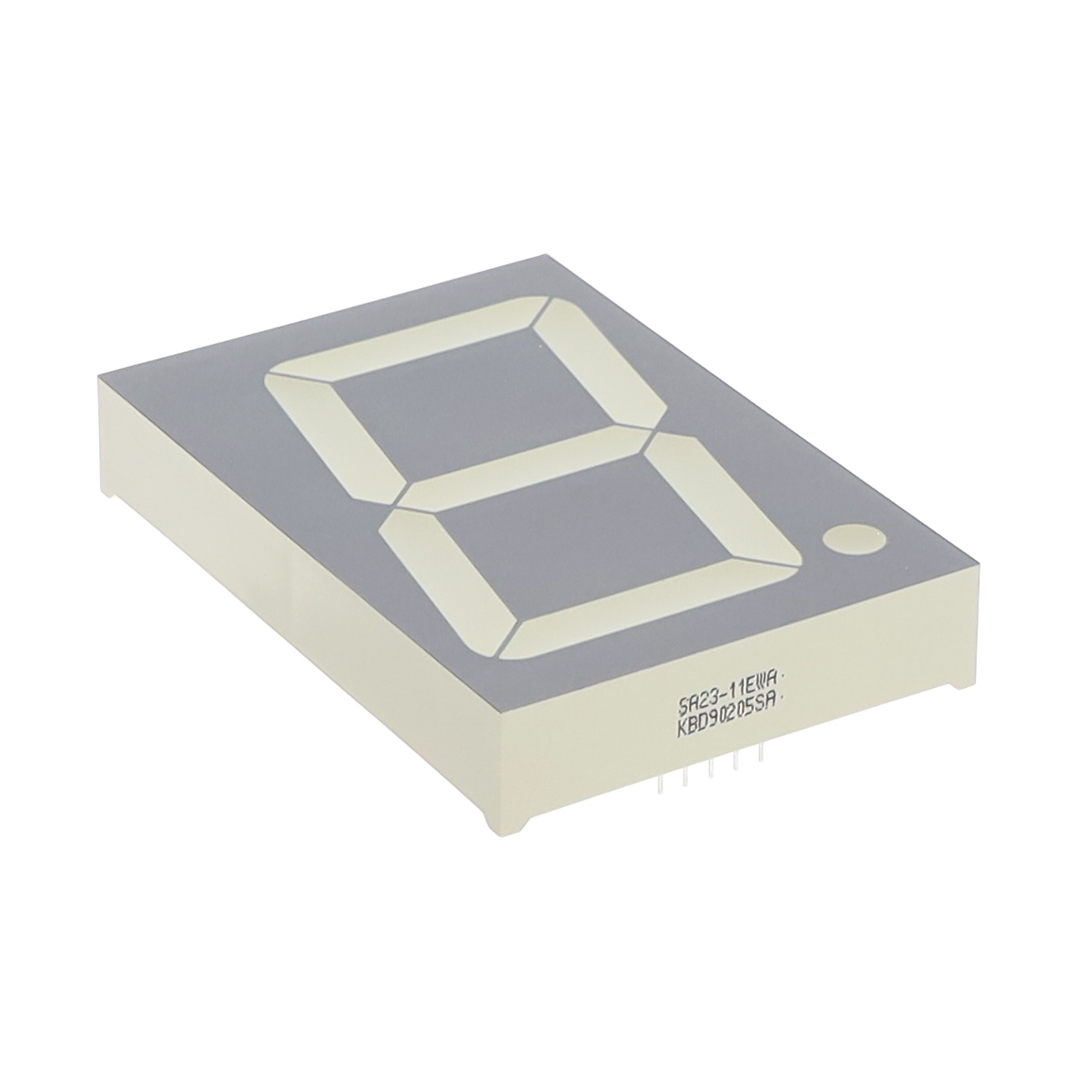

SA23-11EWA
DISPLAY 7SEG 2.24"" SGL RED 20DIPManufacturer: Kingbright
Categories: LED Character and Numeric
Quality Control: Learn More
Display Modules - LED Character and Numeric Red 7-Segment 1 Character Common Anode 8V 20mA 2.756"" H x 1.890"" W x 0.472"" D (70.00mm x 48.00mm x 12.00mm) 20-DIP (2.370"", 60.10mm)
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 8 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 20-DIP (2.370"", 60.10mm) |
| Color | Red |
| Display Type | 7-Segment |
| Size / Dimension | 2.756"" H x 1.890"" W x 0.472"" D (70.00mm x 48.00mm x 12.00mm) |
| Number of Characters | 1 |
| Millicandela Rating | 57mcd |
| Common Pin | Common Anode |
| Digit/Alpha Size | 2.24"" (56.90mm) |
| Voltage - Forward (Vf) (Typ) | 8V |
| Current - Test | 20mA |
| Wavelength - Peak | 627nm |
| Power Dissipation (Max) | 300mW |
Request a Quote
