SA10-21SRWA
DISPLAY 7-SEG 1"" SGL RED 10DIPManufacturer: Kingbright
Categories: LED Character and Numeric
Quality Control: Learn More

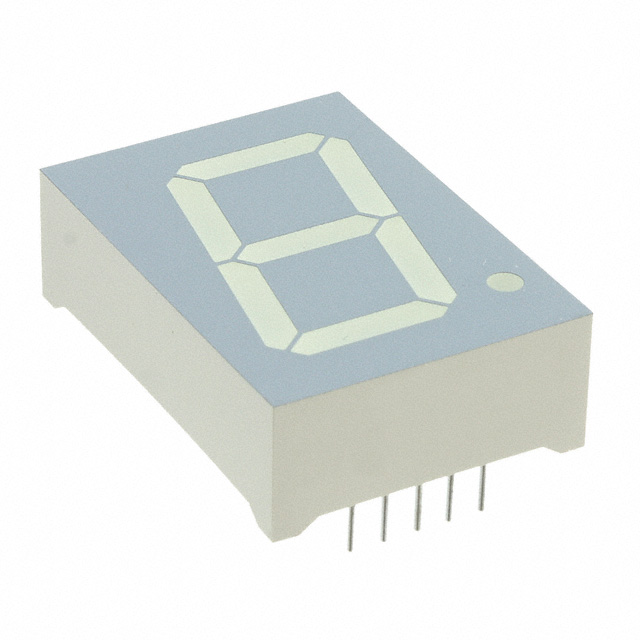

Kingbright SA10-21SRWA is a 7-segment LED numeric display module featuring a single character with a 1.00-inch digit height. This red display operates with a typical forward voltage of 3.7V and a forward current of 20mA, achieving a luminous intensity of 120mcd. The component utilizes a common anode configuration and is housed in a 10-DIP package with a 1.200-inch pin pitch. Its dimensions are 1.339" H x 0.945" W x 0.413" D. This display is suitable for applications in industrial control, instrumentation, and point-of-sale systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 10-DIP (1.200"", 30.48mm) |
| Color | Red |
| Display Type | 7-Segment |
| Size / Dimension | 1.339"" H x 0.945"" W x 0.413"" D (34.00mm x 24.00mm x 10.50mm) |
| Number of Characters | 1 |
| Millicandela Rating | 120mcd |
| Common Pin | Common Anode |
| Digit/Alpha Size | 1.00"" (25.40mm) |
| Voltage - Forward (Vf) (Typ) | 3.7V |
| Current - Test | 20mA |
| Wavelength - Peak | 660nm |
| Power Dissipation (Max) | 150mW |
