SA08-21SURKWA

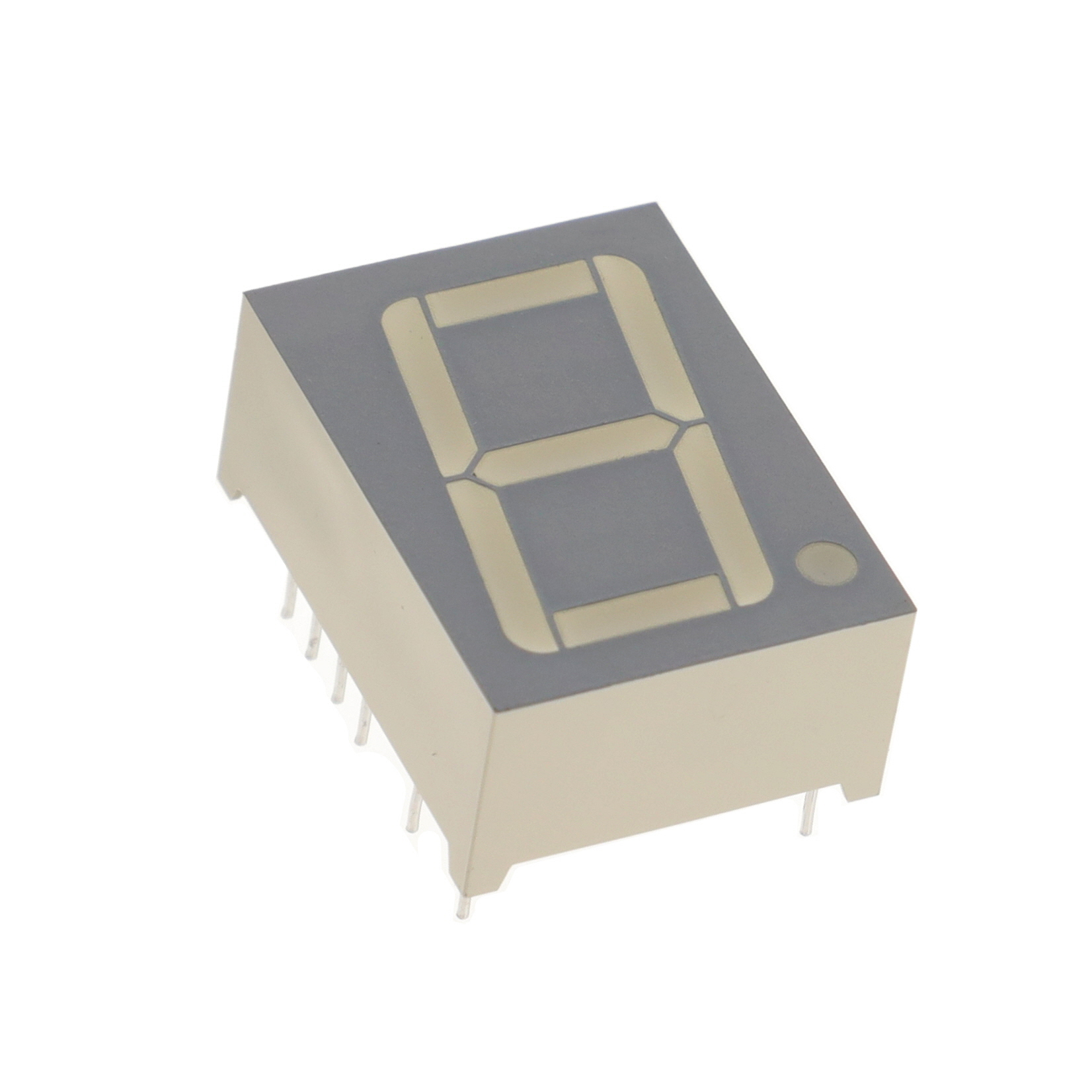

DISPLAY 7-SEG 0.8"" SGL RED 18DIPManufacturer: Kingbright
Categories: LED Character and Numeric
Quality Control: Learn More
Display Modules - LED Character and Numeric Red 7-Segment 1 Character Common Anode 1.95V 20mA 0.984"" H x 0.732"" W x 0.417"" D (25.00mm x 18.60mm x 10.60mm) 18-DIP (0.600"", 15.24mm)
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 8 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 18-DIP (0.600"", 15.24mm) |
| Color | Red |
| Display Type | 7-Segment |
| Size / Dimension | 0.984"" H x 0.732"" W x 0.417"" D (25.00mm x 18.60mm x 10.60mm) |
| Number of Characters | 1 |
| Millicandela Rating | 61mcd |
| Common Pin | Common Anode |
| Digit/Alpha Size | 0.80"" (20.32mm) |
| Voltage - Forward (Vf) (Typ) | 1.95V |
| Current - Test | 20mA |
| Wavelength - Peak | 645nm |
| Power Dissipation (Max) | 75mW |
