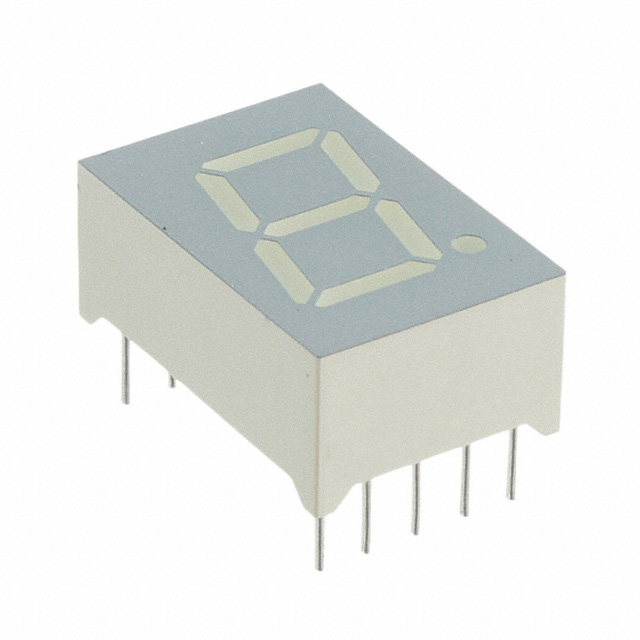

DISPLAY 7-SEG 0.5"" SGL RED 10DIP

Manufacturer: Kingbright

Categories: LED Character and Numeric

Quality Control: Learn More

Kingbright SA05-11SRWA is a single-digit, 7-segment display module featuring a vibrant red LED character with a digit height of 0.50 inches (12.70mm). This component utilizes a common anode configuration and operates at a typical forward voltage of 1.85V with a test current of 20mA, yielding a millicandela rating of 34mcd. The module dimensions are 0.748 inches high by 0.500 inches wide by 0.315 inches deep (19.00mm x 12.70mm x 8.00mm) and it is housed in a 10-DIP package with a 0.600-inch (15.24mm) pin span. The peak wavelength for this red display is 660nm, and the maximum power dissipation is 75mW. This display is commonly found in industrial control panels, point-of-sale terminals, and various instrumentation applications.

Additional Information

Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:
Technical Details:
PackagingTube
Package / Case10-DIP (0.600"", 15.24mm)
ColorRed
Display Type7-Segment
Size / Dimension0.748"" H x 0.500"" W x 0.315"" D (19.00mm x 12.70mm x 8.00mm)
Number of Characters1
Millicandela Rating34mcd
Common PinCommon Anode
Digit/Alpha Size0.50"" (12.70mm)
Voltage - Forward (Vf) (Typ)1.85V
Current - Test20mA
Wavelength - Peak660nm
Power Dissipation (Max)75mW
