SA04-11GWA
DISPLAY 7SEG 0.4"" SGL GRN 14DIPManufacturer: Kingbright
Categories: LED Character and Numeric
Quality Control: Learn More

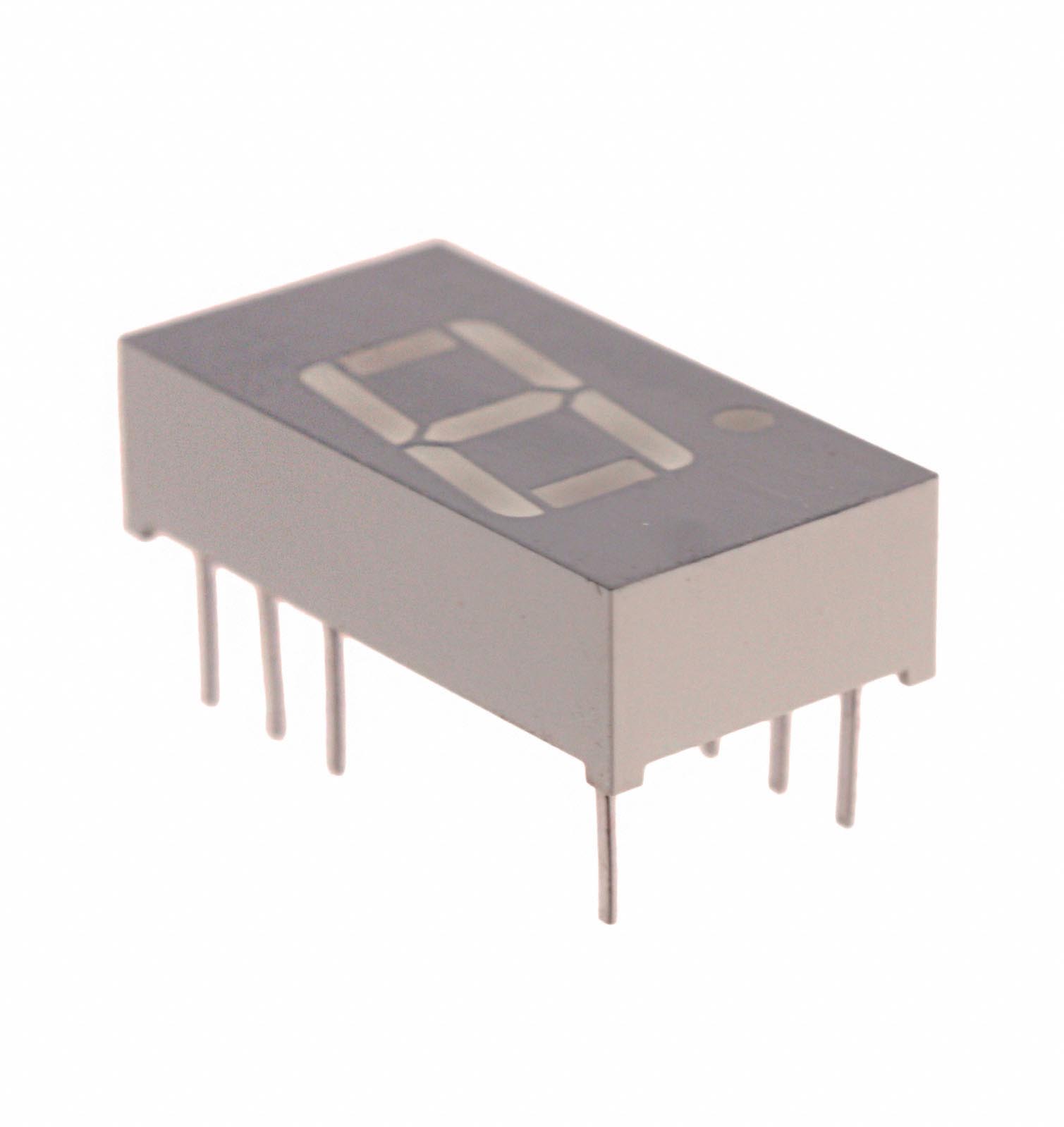

Display Modules - LED Character and Numeric Green 7-Segment 1 Character Common Anode 2.2V 20mA 0.738"" H x 0.386"" W x 0.200"" D (18.75mm x 9.80mm x 5.08mm) 14-DIP (0.295"", 7.50mm)
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 8 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 14-DIP (0.295"", 7.50mm) |
| Color | Green |
| Display Type | 7-Segment |
| Size / Dimension | 0.738"" H x 0.386"" W x 0.200"" D (18.75mm x 9.80mm x 5.08mm) |
| Number of Characters | 1 |
| Millicandela Rating | 8.6mcd |
| Common Pin | Common Anode |
| Digit/Alpha Size | 0.40"" (10.16mm) |
| Voltage - Forward (Vf) (Typ) | 2.2V |
| Current - Test | 20mA |
| Wavelength - Peak | 565nm |
| Power Dissipation (Max) | 62.5mW |
