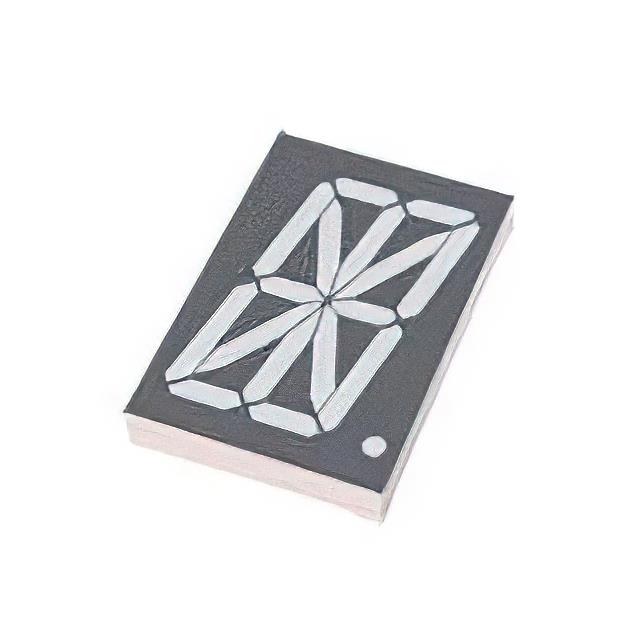

PSA23-11SURKWA
2.3"" RED ALPHANUMERIC LED DISPLAManufacturer: Kingbright
Categories: LED Character and Numeric
Quality Control: Learn More
Display Modules - LED Character and Numeric Red 16-Segment, Alphanumeric 1 Character Common Anode 1.85V, 3.7V 10mA, 20mA 2.750"" H x 1.882"" W x 0.394"" D (69.84mm x 47.80mm x 10.00mm) 20-DIP (2.366"", 60.10mm)
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 8 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 20-DIP (2.366"", 60.10mm) |
| Color | Red |
| Display Type | 16-Segment, Alphanumeric |
| Size / Dimension | 2.750"" H x 1.882"" W x 0.394"" D (69.84mm x 47.80mm x 10.00mm) |
| Number of Characters | 1 |
| Millicandela Rating | 95mcd |
| Common Pin | Common Anode |
| Digit/Alpha Size | 2.24"" (56.80mm) |
| Voltage - Forward (Vf) (Typ) | 1.85V, 3.7V |
| Current - Test | 10mA, 20mA |
| Wavelength - Peak | 645nm |
| Power Dissipation (Max) | 75mW, 150mW, 300mW |
