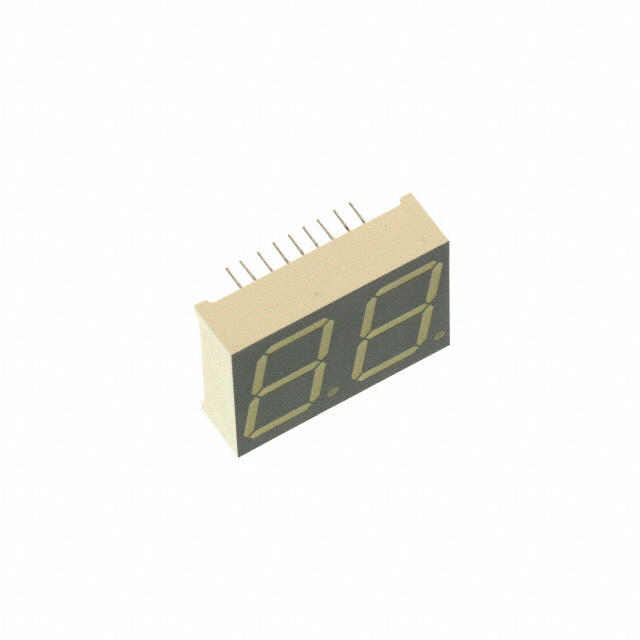

DA08-11SRWA
DISPLAY 7-SEG 0.8"" DBL RED 18DIPManufacturer: Kingbright
Categories: LED Character and Numeric
Quality Control: Learn More
The Kingbright DA08-11SRWA is a two-digit, 0.80-inch (20.32mm) 7-segment display module. This red LED display features a common anode configuration and operates with a typical forward voltage of 1.85V and a test current of 20mA, yielding a millicandela rating of 32mcd. The module’s dimensions are 1.018 inches (25.85mm) in height, 1.409 inches (35.80mm) in width, and 0.394 inches (10.00mm) in depth. It is housed in an 18-DIP package with a 0.866-inch (22.00mm) pin pitch. Typical applications for this component include industrial control systems and instrumentation displays.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 18-DIP (0.866"", 22.00mm) |
| Color | Red |
| Display Type | 7-Segment |
| Size / Dimension | 1.018"" H x 1.409"" W x 0.394"" D (25.85mm x 35.80mm x 10.00mm) |
| Number of Characters | 2 |
| Millicandela Rating | 32mcd |
| Common Pin | Common Anode |
| Digit/Alpha Size | 0.80"" (20.32mm) |
| Voltage - Forward (Vf) (Typ) | 1.85V |
| Current - Test | 20mA |
| Wavelength - Peak | 660nm |
| Power Dissipation (Max) | 75mW |
