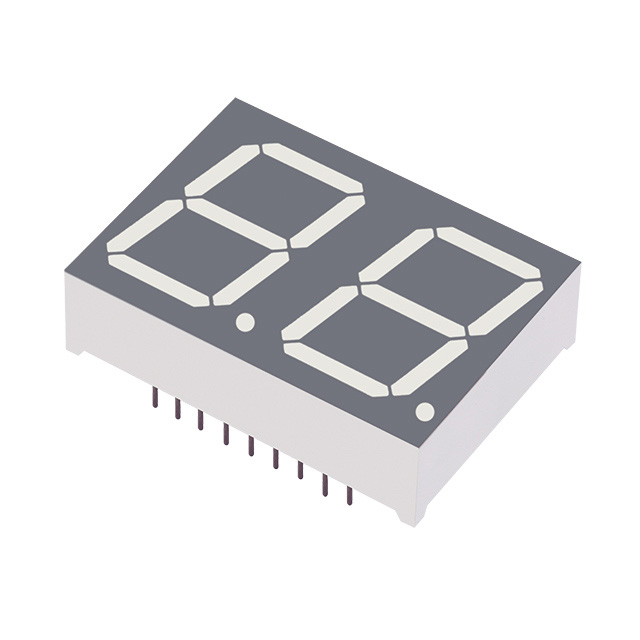

DA08-11GWA
DISPLAY 7SEG 0.8"" DBL GRN 18DIPManufacturer: Kingbright
Categories: LED Character and Numeric
Quality Control: Learn More
Display Modules - LED Character and Numeric Green 7-Segment 2 Character Common Anode 2.2V 20mA 1.018"" H x 1.409"" W x 0.394"" D (25.85mm x 35.80mm x 10.00mm) 18-DIP (0.866"", 22.00mm)
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 8 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 18-DIP (0.866"", 22.00mm) |
| Color | Green |
| Display Type | 7-Segment |
| Size / Dimension | 1.018"" H x 1.409"" W x 0.394"" D (25.85mm x 35.80mm x 10.00mm) |
| Number of Characters | 2 |
| Millicandela Rating | 11mcd |
| Common Pin | Common Anode |
| Digit/Alpha Size | 0.80"" (20.32mm) |
| Voltage - Forward (Vf) (Typ) | 2.2V |
| Current - Test | 20mA |
| Wavelength - Peak | 565nm |
| Power Dissipation (Max) | 62.5mW |
