DA04-11SURKWA
DISPLAY 7SEG 0.39"" DBL RED 16DIPManufacturer: Kingbright
Categories: LED Character and Numeric
Quality Control: Learn More

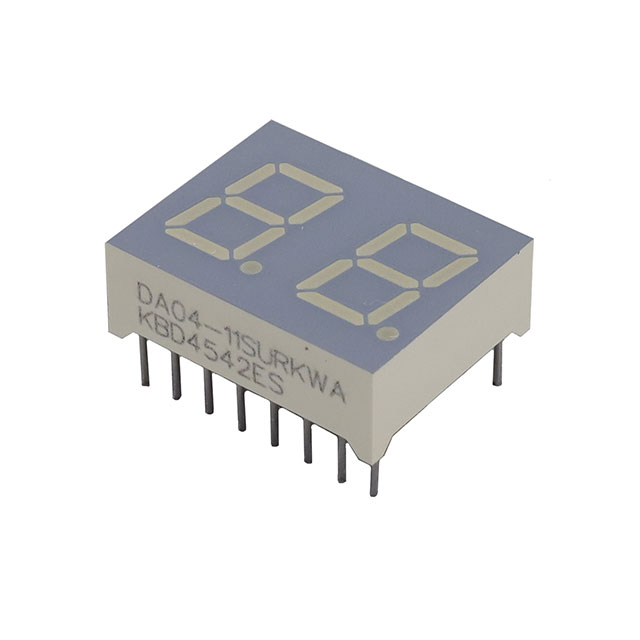

Display Modules - LED Character and Numeric Red 7-Segment 2 Character Common Anode 1.95V 20mA 0.795"" H x 0.630"" W x 0.276"" D (20.20mm x 16.00mm x 7.00mm) 16-DIP (0.500"", 12.70mm)
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 8 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 16-DIP (0.500"", 12.70mm) |
| Color | Red |
| Display Type | 7-Segment |
| Size / Dimension | 0.795"" H x 0.630"" W x 0.276"" D (20.20mm x 16.00mm x 7.00mm) |
| Number of Characters | 2 |
| Millicandela Rating | 54mcd |
| Common Pin | Common Anode |
| Digit/Alpha Size | 0.39"" (10.00mm) |
| Voltage - Forward (Vf) (Typ) | 1.95V |
| Current - Test | 20mA |
| Wavelength - Peak | 645nm |
| Power Dissipation (Max) | 75mW |
