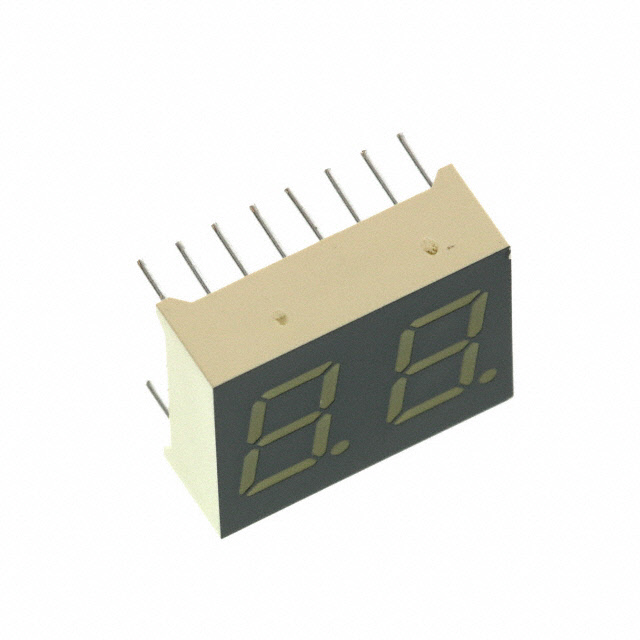

DA04-11SRWA
DISPLAY 7SEG 0.39"" DBL RED 16DIPManufacturer: Kingbright
Categories: LED Character and Numeric
Quality Control: Learn More
Kingbright DA04-11SRWA is a dual-digit, 0.39-inch (10.00mm) red 7-segment display module. This component features a common anode configuration and operates with a typical forward voltage of 1.85V and a test current of 20mA, yielding a luminous intensity of 29mcd. The display's dimensions are 0.630" (16.00mm) height by 0.795" (20.20mm) width, with a depth of 0.276" (7.00mm). It is housed in a 16-DIP package with a 0.500" (12.70mm) lead spacing. The maximum power dissipation is 75mW, and the peak wavelength is 660nm. This display is commonly utilized in industrial control systems, instrumentation, and point-of-sale equipment.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 16-DIP (0.500"", 12.70mm) |
| Color | Red |
| Display Type | 7-Segment |
| Size / Dimension | 0.630"" H x 0.795"" W x 0.276"" D (16.00mm x 20.20mm x 7.00mm) |
| Number of Characters | 2 |
| Millicandela Rating | 29mcd |
| Common Pin | Common Anode |
| Digit/Alpha Size | 0.39"" (10.00mm) |
| Voltage - Forward (Vf) (Typ) | 1.85V |
| Current - Test | 20mA |
| Wavelength - Peak | 660nm |
| Power Dissipation (Max) | 75mW |
