CA56-11SRWA
DISP 7SEG 0.56"" QUAD RED 36DIPManufacturer: Kingbright
Categories: LED Character and Numeric
Quality Control: Learn More

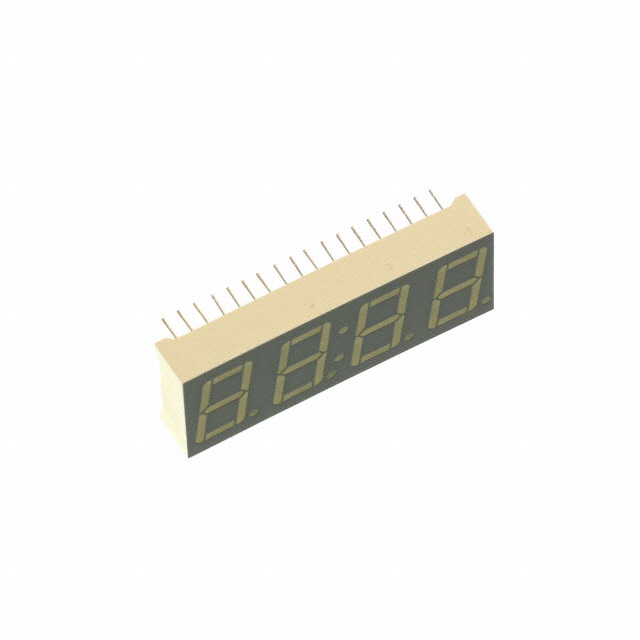

Kingbright CA56-11SRWA is a 4-digit, 0.56-inch red 7-segment display module featuring a common anode configuration. This RoHS-compliant component operates with a typical forward voltage of 1.85V and a test current of 20mA, providing a luminous intensity of 40mcd at its peak wavelength of 660nm. The module is housed in a 36-DIP package with a 0.600-inch pin pitch, measuring 0.748 inches high, 1.980 inches wide, and 0.319 inches deep. Power dissipation is rated at a maximum of 75mW. This display is commonly utilized in instrumentation, industrial control systems, and consumer electronics where clear numerical indication is essential.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 36-DIP Module (0.600"", 15.24mm) |
| Color | Red |
| Display Type | 7-Segment Clock |
| Size / Dimension | 0.748"" H x 1.980"" W x 0.319"" D (19.00mm x 50.30mm x 8.10mm) |
| Number of Characters | 4 |
| Millicandela Rating | 40mcd |
| Common Pin | Common Anode |
| Digit/Alpha Size | 0.56"" (14.22mm) |
| Voltage - Forward (Vf) (Typ) | 1.85V |
| Current - Test | 20mA |
| Wavelength - Peak | 660nm |
| Power Dissipation (Max) | 75mW |
