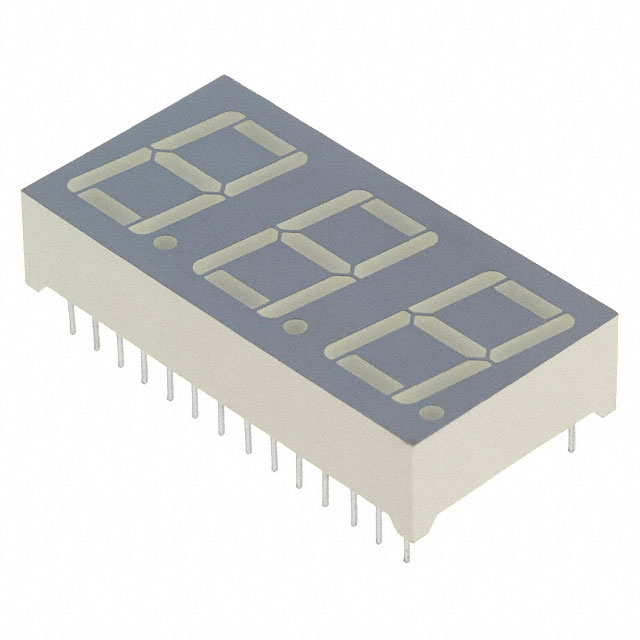

BC56-11EWA
DISPLAY 7SEG 0.56"" TRP RED 28DIPManufacturer: Kingbright
Categories: LED Character and Numeric
Quality Control: Learn More
Display Modules - LED Character and Numeric Red 7-Segment 3 Character Common Cathode 2V 20mA 1.480"" H x 0.748"" W x 0.319"" D (37.60mm x 19.00mm x 8.10mm) 28-DIP (0.600"", 15.24mm)
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 8 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 28-DIP (0.600"", 15.24mm) |
| Color | Red |
| Display Type | 7-Segment |
| Size / Dimension | 1.480"" H x 0.748"" W x 0.319"" D (37.60mm x 19.00mm x 8.10mm) |
| Number of Characters | 3 |
| Millicandela Rating | 5.8mcd |
| Common Pin | Common Cathode |
| Digit/Alpha Size | 0.56"" (14.22mm) |
| Voltage - Forward (Vf) (Typ) | 2V |
| Current - Test | 20mA |
| Wavelength - Peak | 627nm |
| Power Dissipation (Max) | 75mW |
