WP934EB/2SRD
LED CBI 3MM BI-LVL RED RAManufacturer: Kingbright
Categories: Circuit Board Indicators, Arrays, Light Bars, Bar Graphs
Quality Control: Learn More

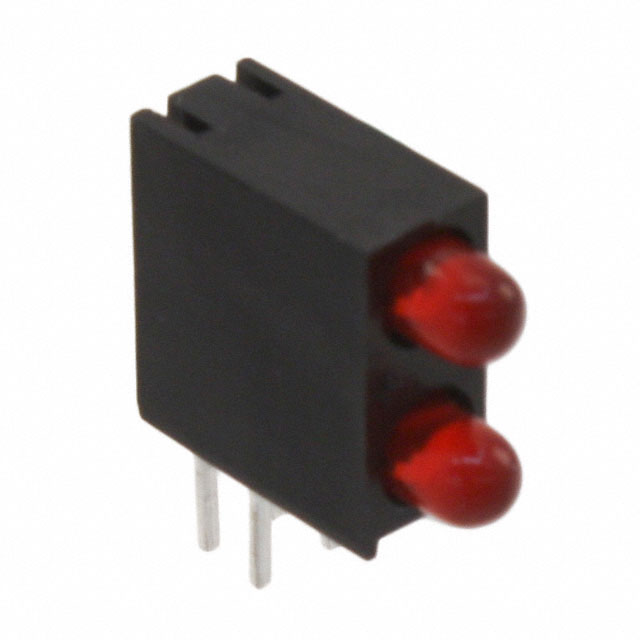

Kingbright WP934EB-2SRD is a Red LED Circuit Board Indicator. This component features a 2-high configuration with two individual LEDs, each emitting a diffused, tinted red light. The LEDs are housed in a 3mm (T-1) package with a round, domed top, designed for right-angle, through-hole mounting. Each LED operates at a forward voltage of 1.85V and a current of 20mA, producing a typical millicandela rating of 400mcd and a peak wavelength of 655nm. The viewing angle is 40°. This component is commonly utilized in industrial automation, consumer electronics, and medical equipment for status indication.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Current | 20mA |
| Color | Red (x 2) |
| Voltage Rating | 1.85V |
| Mounting Type | Through Hole, Right Angle |
| Millicandela Rating | 400mcd |
| Configuration | 2 High |
| Viewing Angle | 40° |
| Lens Type | Diffused, Tinted |
| Wavelength - Peak | 655nm |
| Lens Style | Round with Domed Top |
| Lens Size | 3mm, T-1 |
