WP4060XH/3ID
LED CBI 1.8MM 3X1 RED RAManufacturer: Kingbright
Categories: Circuit Board Indicators, Arrays, Light Bars, Bar Graphs
Quality Control: Learn More

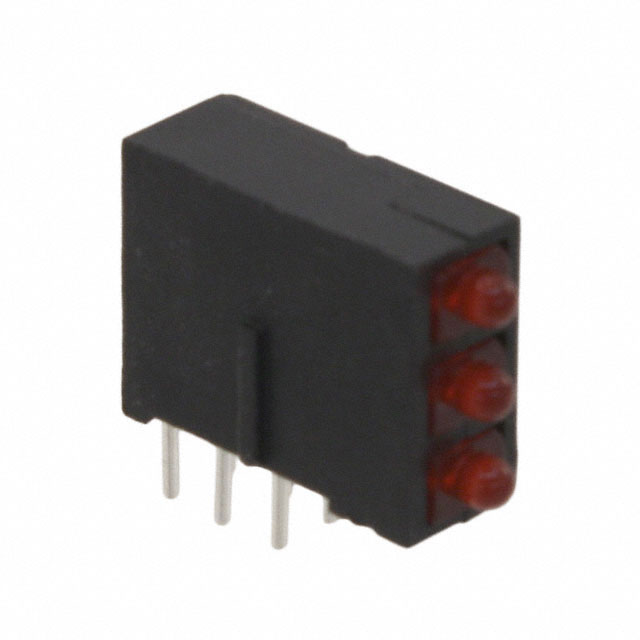

Kingbright WP4060XH-3ID is a three-high, right-angle, through-hole LED circuit board indicator. This component features three diffused, tinted red LEDs, each with a 1.80mm diameter round, domed top lens. The typical forward voltage is 2V with an operating current of 20mA, providing a luminous intensity of 11.5mcd and a peak wavelength of 625nm. This indicator is suitable for applications requiring compact, right-angle illumination on printed circuit boards, commonly found in industrial control systems, consumer electronics, and medical equipment. The bulk packaging facilitates high-volume integration.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Current | 20mA |
| Color | Red (x 3) |
| Voltage Rating | 2V |
| Mounting Type | Through Hole, Right Angle |
| Millicandela Rating | 11.5mcd |
| Configuration | 3 High |
| Viewing Angle | 70° |
| Lens Type | Diffused, Tinted |
| Wavelength - Peak | 625nm |
| Lens Style | Round with Domed Top |
| Lens Size | 1.80mm Dia |
