WP1503EB/2SRD
LED CBI 5MM BI-LVL RED RAManufacturer: Kingbright
Categories: Circuit Board Indicators, Arrays, Light Bars, Bar Graphs
Quality Control: Learn More

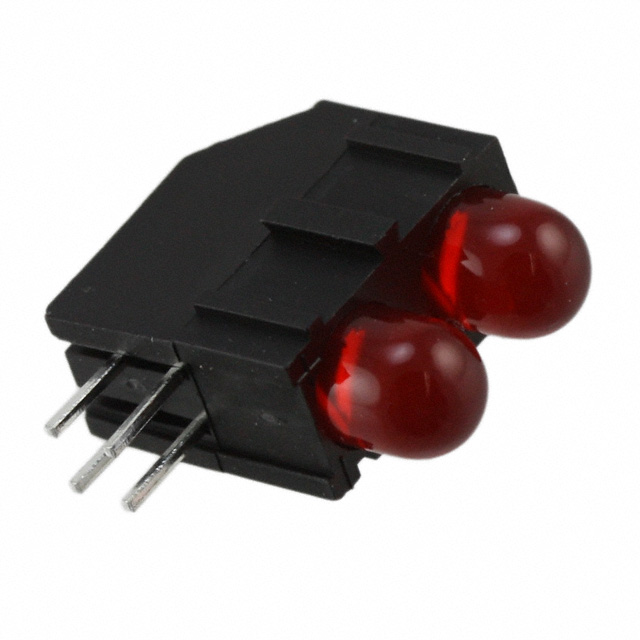

Kingbright WP1503EB-2SRD is a dual-element, right-angle LED Circuit Board Indicator. This component features two high-efficiency red LEDs, each with a 5mm (T-1 3/4) diffused, tinted lens and a round, domed top for optimal light dispersion. The indicator operates at a forward voltage of 1.85V and a recommended forward current of 20mA, delivering a typical luminous intensity of 1000mcd per element at a 660nm peak wavelength. The right-angle mounting and through-hole termination are designed for efficient PCB integration, making it suitable for applications requiring visual status indication in industrial automation, consumer electronics, and medical equipment. The diffused, tinted lens ensures consistent light output and wide viewing angles of 60°. Supplied in bulk packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Current | 20mA |
| Color | Red (x 2) |
| Voltage Rating | 1.85V |
| Mounting Type | Through Hole, Right Angle |
| Millicandela Rating | 1000mcd |
| Configuration | 2 High |
| Viewing Angle | 60° |
| Lens Type | Diffused, Tinted |
| Wavelength - Peak | 660nm |
| Lens Style | Round with Domed Top |
| Lens Size | 5mm, T-1 3/4 |
