WP1503CB/SRD
LED CBI 5MM RED RAManufacturer: Kingbright
Categories: Circuit Board Indicators, Arrays, Light Bars, Bar Graphs
Quality Control: Learn More

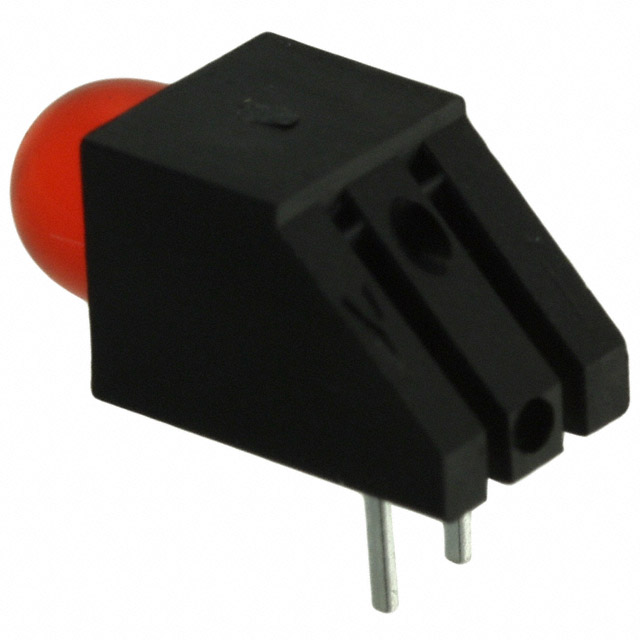

Kingbright WP1503CB-SRD is a single, diffused, tinted red LED circuit board indicator. This component features a 5mm (T-1 3/4) round, domed top lens style and is designed for through-hole mounting in a right-angle configuration. It operates at a forward voltage of 1.85V and a forward current of 20mA, achieving a typical luminous intensity of 1000mcd with a peak wavelength of 660nm. The viewing angle is rated at 60°. This indicator is commonly found in industrial automation, medical equipment, and consumer electronics, providing clear visual feedback in various applications. The product is supplied in bulk packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Current | 20mA |
| Color | Red |
| Voltage Rating | 1.85V |
| Mounting Type | Through Hole, Right Angle |
| Millicandela Rating | 1000mcd |
| Configuration | Single |
| Viewing Angle | 60° |
| Lens Type | Diffused, Tinted |
| Wavelength - Peak | 660nm |
| Lens Style | Round with Domed Top |
| Lens Size | 5mm, T-1 3/4 |
