WP132WUM/EGW
LED CBI GRN/RED RA INDICATORManufacturer: Kingbright
Categories: Circuit Board Indicators, Arrays, Light Bars, Bar Graphs
Quality Control: Learn More

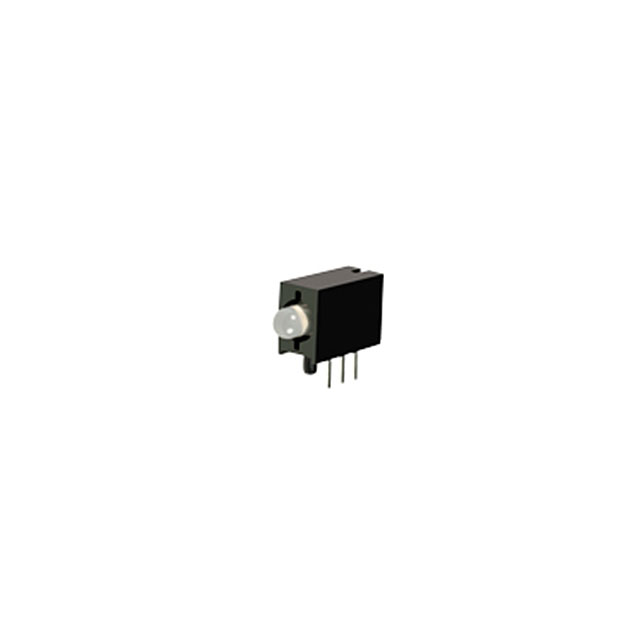

Kingbright WP132WUM-EGW is a single, right-angle, through-hole LED circuit board indicator featuring distinct green and red diffused light output optimized for board-level status indication. The green LED operates at a forward voltage of 2.2V with a typical current of 25mA, achieving a luminous intensity of 35mcd at a peak wavelength of 568nm. The red LED requires a 2V forward voltage and can handle up to 30mA, providing 40mcd luminous intensity at 625nm. Both emitters offer a 60° viewing angle. This component is commonly utilized in industrial automation, consumer electronics, and medical equipment for visual feedback and status monitoring applications.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BagDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bag |
| Current | 25mA Green, 30mA Red |
| Color | Green, Red |
| Voltage Rating | 2.2V Green, 2V Red |
| Mounting Type | Through Hole, Right Angle |
| Millicandela Rating | 35mcd Green, 40mcd Red |
| Configuration | Single |
| Viewing Angle | 60° |
| Lens Type | Diffused, White |
| Wavelength - Peak | 568nm, 625nm |
