DE4SRD
LED LGT BAR 15MM SQ REDManufacturer: Kingbright
Categories: Circuit Board Indicators, Arrays, Light Bars, Bar Graphs
Quality Control: Learn More

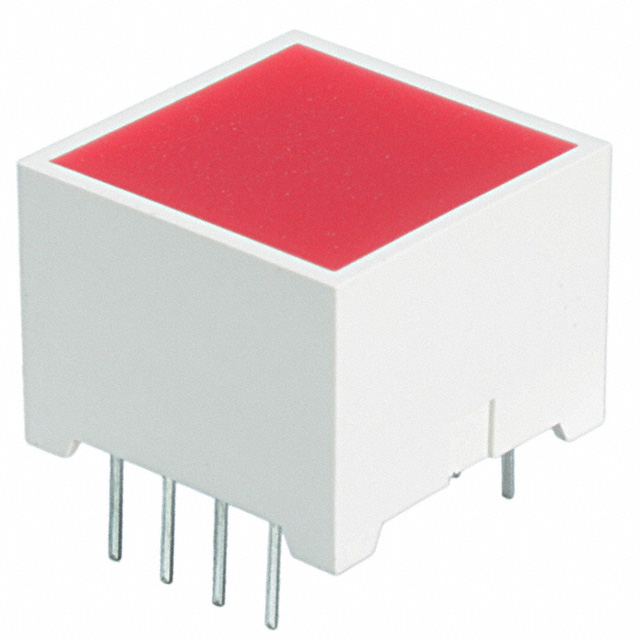

Kingbright DE4SRD is a red LED bar circuit board indicator. This through-hole component features a single, diffused, tinted square lens with a flat top, measuring 15.00mm. Operating at a forward voltage of 1.85V and a current of 30mA, it provides a typical millicandela rating of 340mcd with a peak wavelength of 660nm. Supplied in tube packaging, the DE4SRD is utilized in industrial automation, consumer electronics, and automotive applications requiring clear visual status indication.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Current | 30mA |
| Color | Red |
| Voltage Rating | 1.85V |
| Mounting Type | Through Hole |
| Millicandela Rating | 340mcd |
| Configuration | Bar - Single, DIP |
| Viewing Angle | - |
| Lens Type | Diffused, Tinted |
| Wavelength - Peak | 660nm |
| Lens Style | Square with Flat Top |
| Lens Size | 15.00mm |
