DC7G3HWA
LED CBI 10-SEG GRN/RED VERTManufacturer: Kingbright
Categories: Circuit Board Indicators, Arrays, Light Bars, Bar Graphs
Quality Control: Learn More

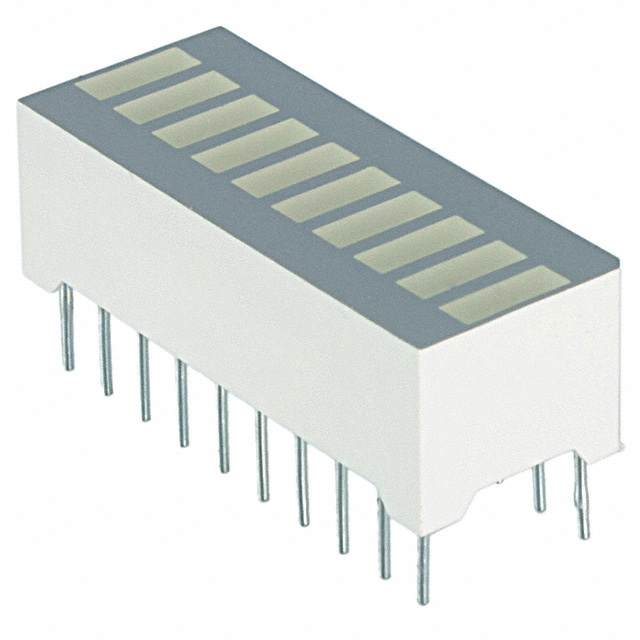

Kingbright DC7G3HWA is a 10-segment LED bar graph, specifically a Circuit Board Indicator. This through-hole component features a diffused white lens and is configured for vertical mounting. The array comprises seven green LEDs, each with a typical forward voltage of 2.2V and a peak wavelength of 565nm, capable of handling 25mA. It also includes three red LEDs, each with a typical forward voltage of 2.25V and a peak wavelength of 700nm, also rated for 25mA. The millicandela ratings are 12mcd for green and 1.9mcd for red. This device is suitable for applications in industrial automation, test and measurement equipment, and consumer electronics requiring visual status indication.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Current | 25mA Green, 25mA Red |
| Color | Green (x 7), Red (x 3) |
| Voltage Rating | 2.2V Green, 2.25V Red |
| Mounting Type | Through Hole |
| Millicandela Rating | 12mcd Green, 1.9mcd Red |
| Configuration | Bar - 10 Wide, DIP |
| Viewing Angle | - |
| Lens Type | Diffused, White |
| Wavelength - Peak | 565nm, 700nm |
