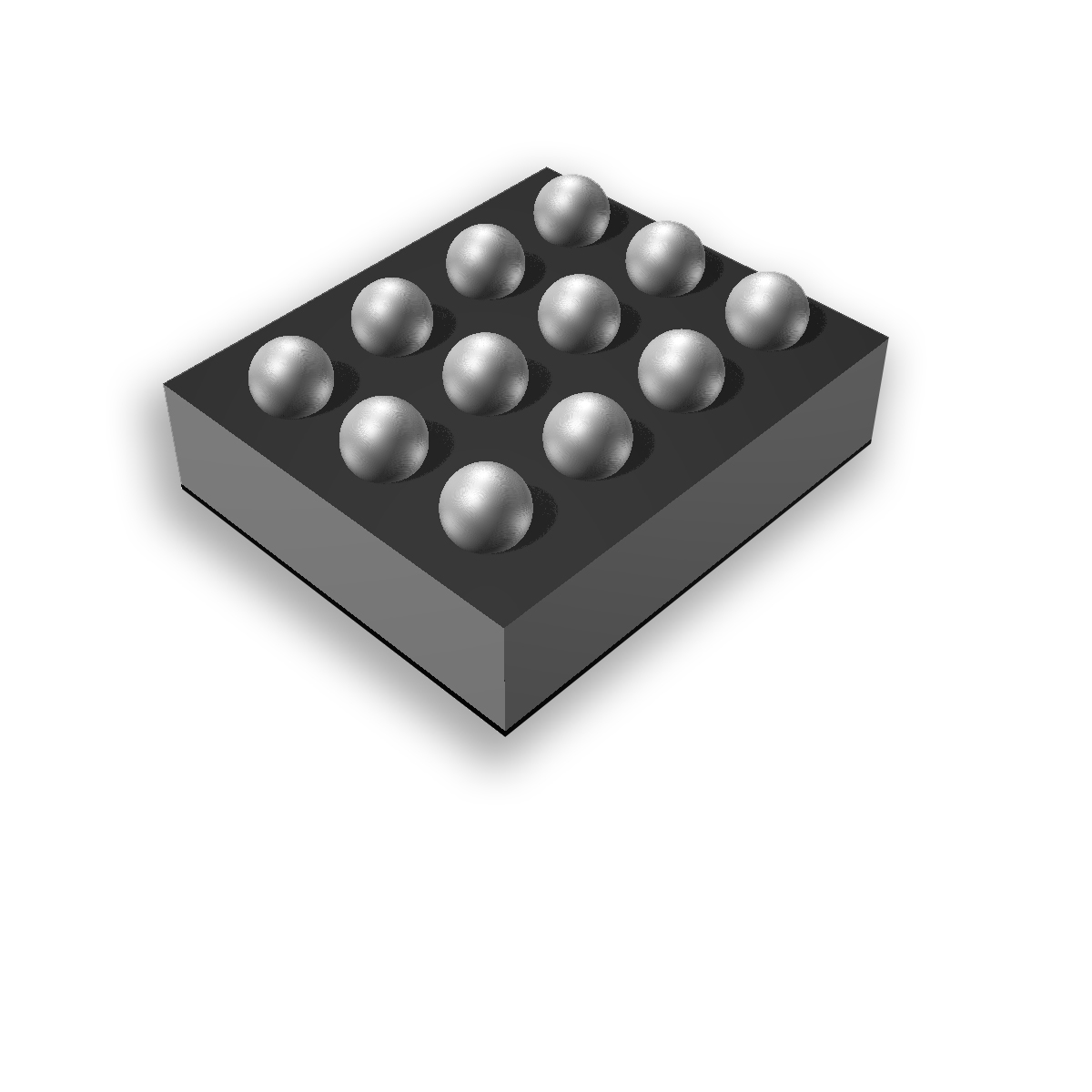

KTD2686EUD-TR
THREE-CHANNEL FLASH LED DRIVER WManufacturer: Kinetic Technologies
Categories: LED Drivers
Quality Control: Learn More
LED Driver IC 3 Output DC DC Regulator Step-Up (Boost) I2C Dimming 500mA, 1A, 1.5A 12-WLCSP (1.42x1.66)
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 16 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 12-WFBGA, WLCSP |
| Voltage - Output | - |
| Mounting Type | Surface Mount |
| Number of Outputs | 3 |
| Frequency | 2MHz, 4MHz |
| Type | DC DC Regulator |
| Operating Temperature | -40°C ~ 85°C |
| Applications | Camera Flash |
| Current - Output / Channel | 500mA, 1A, 1.5A |
| Internal Switch(s) | - |
| Topology | Step-Up (Boost) |
| Supplier Device Package | 12-WLCSP (1.42x1.66) |
| Dimming | I2C |
| Voltage - Supply (Min) | 2.7V |
| Voltage - Supply (Max) | 5.5V |
Request a Quote
Clients Also Buy
KTD2041EUAC-TR
9-CHANNEL IR LED DRIVER WITH BUC
KTZ8863AEJAA-TR
HIGH EFFICIENCY 3-CH LED BACKLIG

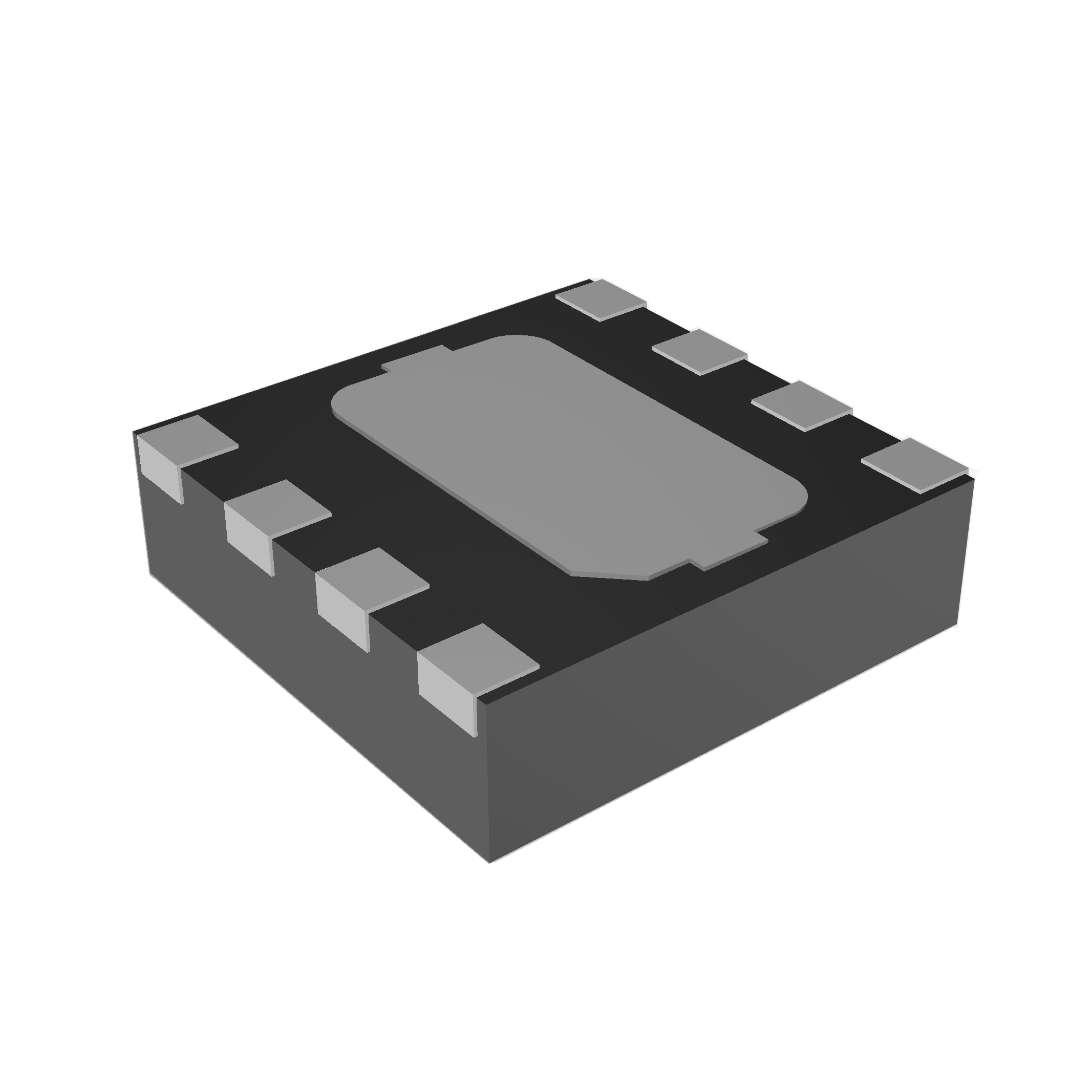

KTD2027EWE-TR
