VS-BV203-B
SENSOR VIB ACCELERATION LOW PROFManufacturer: KEMET
Categories: Vibration Sensors
Quality Control: Learn More

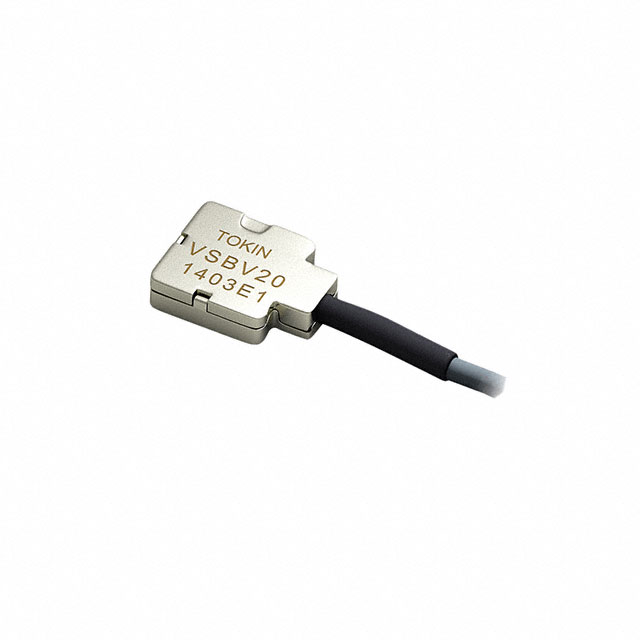

KEMET VS series VS-BV203-B is a low-profile vibration and acceleration sensor featuring a built-in amplifier. This component offers voltage output and is designed for applications requiring precise motion detection across a sensing range of 10Hz to 15kHz. The VS-BV203-B operates within a temperature range of -25°C to 75°C and utilizes a power supply of 3.0V to 5.5V with a typical current consumption of 350µA. Termination is provided via a cable with a connector, and mounting is user-defined. This sensor is suitable for use in industrial automation, automotive systems, and structural health monitoring.
Additional Information
Series: VSRoHS Status: ROHS3 CompliantManufacturer Lead Time: 27 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Built-In Amplifier |
| Packaging | Bulk |
| Package / Case | Module |
| Output Type | Voltage |
| Sensitivity | - |
| Mounting Type | User Defined |
| Operating Temperature | -25°C ~ 75°C |
| Sensor Type | Vibration, Acceleration |
| Power - Rated | 3.0 V ~ 5.5 V / 350µA |
| Termination | Cable with Connector |
| Sensing Range | 10Hz ~ 15kHz |
Request a Quote
