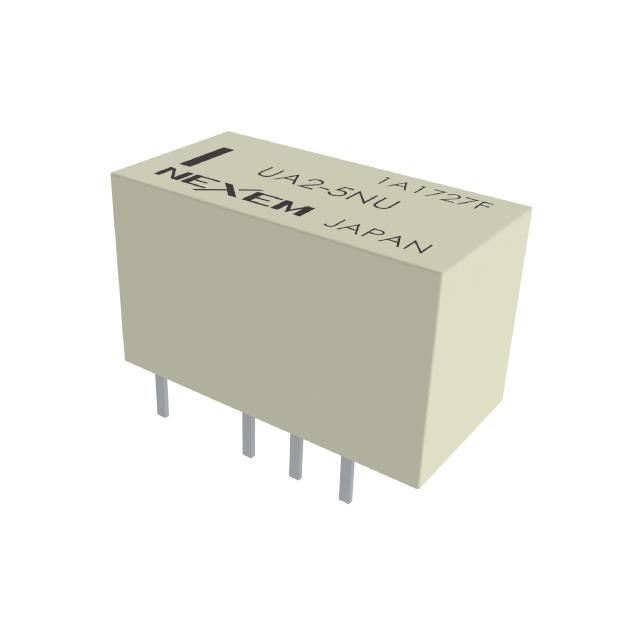

UA2-4.5SNJ
RELAY GEN PURPOSE DPDT 1A 4.5VManufacturer: KEMET
Categories: Signal Relays, Up to 2 Amps
Quality Control: Learn More
General Purpose Relay DPDT (2 Form C) Through Hole
Additional Information
Series: UA2RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tube |
| Mounting Type | Through Hole |
| Coil Voltage | 4.5VDC |
| Operating Temperature | -40°C ~ 85°C |
| Termination Style | PC Pin |
| Approval Agency | CSA, TUV, UL |
| Relay Type | General Purpose |
| Coil Current | 22.2 mA |
| Coil Type | Latching, Single Coil |
| Seal Rating | - |
| Contact Material | Silver Alloy, Gold Alloy |
| Contact Form | DPDT (2 Form C) |
| Contact Rating (Current) | 1 A |
| Switching Voltage | 250VAC, 220VDC - Max |
| Must Release Voltage | - |
| Must Operate Voltage | 3.38 VDC |
| Operate Time | 2 ms |
| Release Time | 1 ms |
| Grade | - |
| Coil Insulation | - |
| Qualification | - |
| Load - Max Switching | 250VA, 220W |
Request a Quote
Clients Also Buy

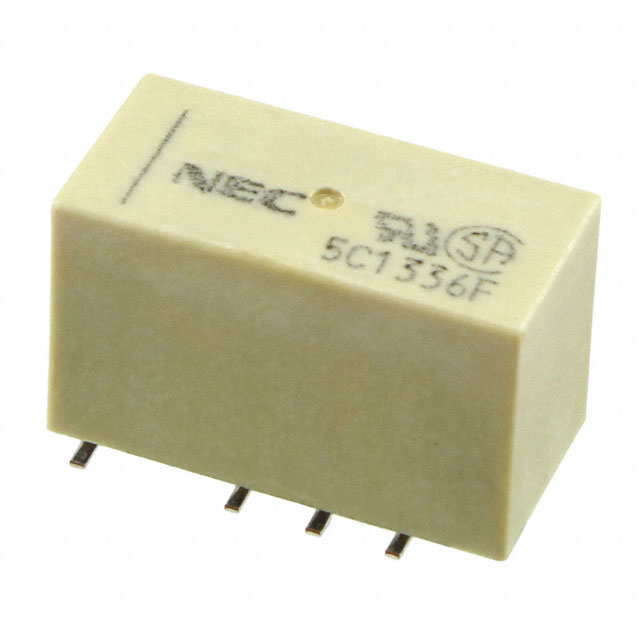

EE2-12NUX-L
RELAY GEN PURPOSE DPDT 2A 12V

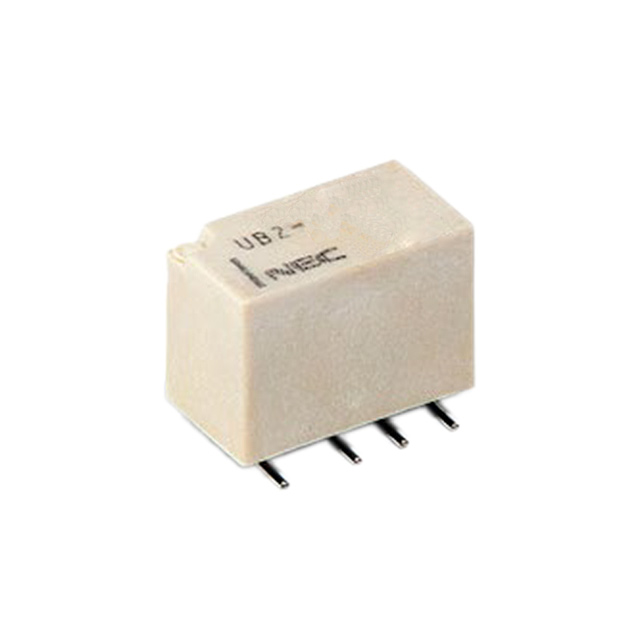

UB2-12NU-L
