FG-R05-4A
FLUX GATE TYPE RESIDUAL CURRENTManufacturer: KEMET
Categories: Current Sensors
Quality Control: Learn More

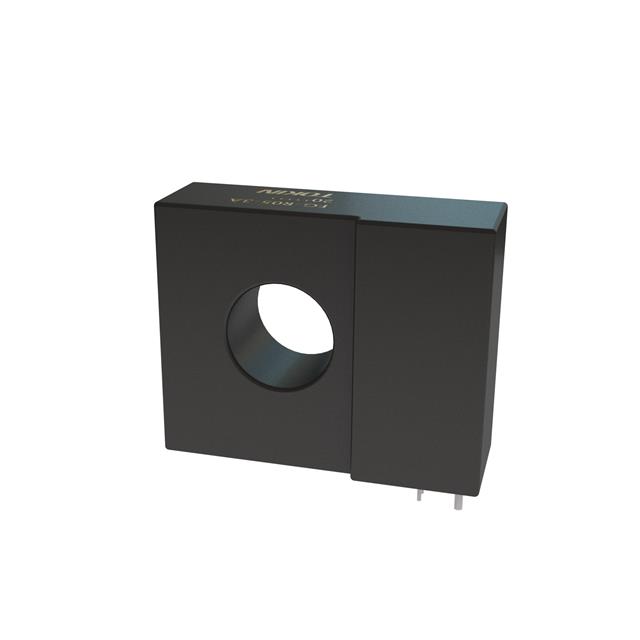

KEMET FG Series FG-R05-4A is a flux gate current sensor module designed for precise AC and DC current measurement. This open-loop, bidirectional, single pass-through module offers a sensing current capability of 50mA with a typical supply current of 13mA. It operates over a wide voltage supply range of 4.75V to 5.25V and features a ratiometric voltage output. The sensor is engineered for robust performance with a sensitivity of 40V/A and a frequency response suitable for 55Hz applications. Its response times are specified at 250ms for AC and 1s for DC. The FG-R05-4A is suitable for through-hole mounting and operates within an ambient temperature range of -40°C to 85°C. This component finds application in various industrial sectors requiring accurate current monitoring.
Additional Information
Series: FGRoHS Status: ROHS3 CompliantManufacturer Lead Time: 35 week(s)Product Status: ActivePackaging: BoxDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Box |
| Package / Case | Module, Single Pass Through |
| Polarization | Bidirectional |
| Sensitivity | 40V/A |
| Mounting Type | Through Hole |
| Output | Ratiometric, Voltage |
| Frequency | 55Hz |
| Accuracy | - |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 4.75V ~ 5.25V |
| Response Time | 250ms (AC), 1s (DC) |
| Sensor Type | Flux Gate, Open Loop |
| Linearity | - |
| For Measuring | AC/DC |
| Current - Supply (Max) | 13mA (Typ) |
| Current - Sensing | 50mA |
| Number of Channels | 1 |
